Hager SK603 Ammeter Switch
New
In stock3 unitsReady to ship
Hager Ammeter Switch SK603 with 3 modules, rated current of 20 A, and operational voltage of 400 V AC. Designed for easy DIN rail mounting and reliable current monitoring in three-phase networks.
120400690aACAmmeterConductorconnectionCurrentDINElectricalFlexibleHagerInsulationLossmonitoringMountingNetworkPowerrailRatedscrewSwitchThree-PhaseVvoltageW
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

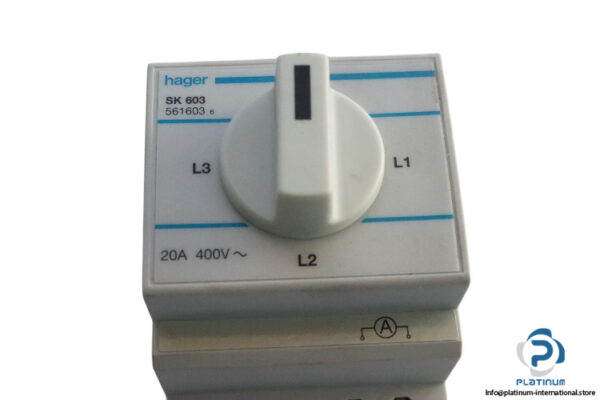

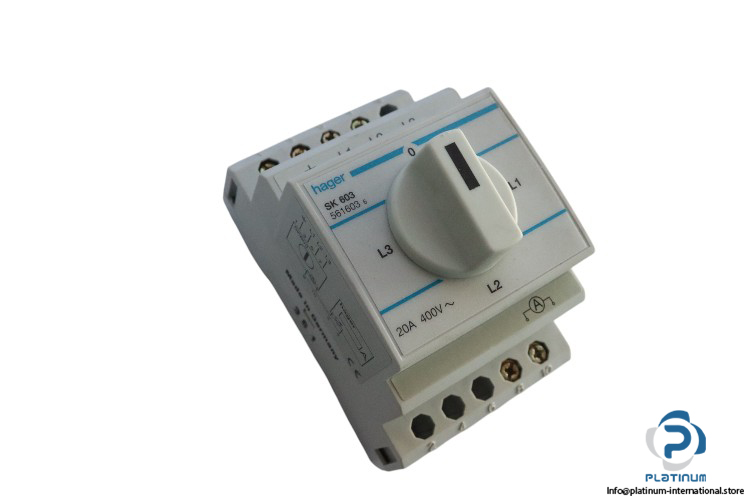

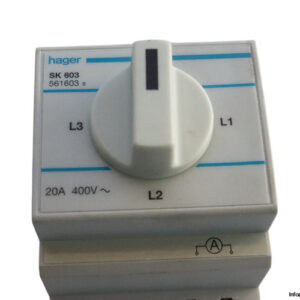

Hager Ammeter Switch SK603
Hager Ammeter Switch SK603 is a high-performance switch designed for reliable monitoring of electrical systems. Ideal for use in industrial and commercial applications, this ammeter switch provides robust features for controlling and monitoring current within three-phase networks.
- Manufacturer: Hager
- Type: Ammeter Switch
- Model: SK603
- Part No.: 561603
Technical Data:
- No. of Modules: 3
- No. of Positions of the Switch: 4
- Rated Operational Voltage (Ue): 400 V AC
- Rated Insulation Voltage (Ui): 690 V
- Total Power Loss under In: 1 W
- Rated Current: 20 A
- Frequency: 50 Hz
- Network Type: Three-phase with neutral
- Connection Cross-Section for Flexible Conductor: 1.5 / 10 mm²
- Connection Cross-Section for Rigid Cable: 1 / 6 mm²
- Type of Connection: Screw connection
- Mounting Type: DIN Rail
- Operating Temperature: -10 to 40 °C
- Dimensions: 64 x 85 x 70 mm
