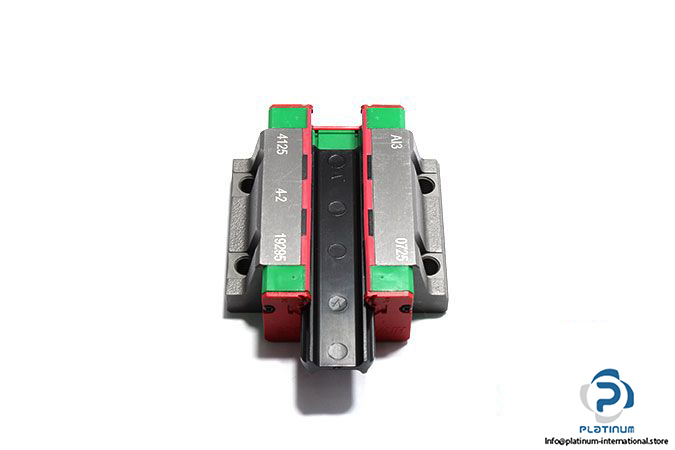

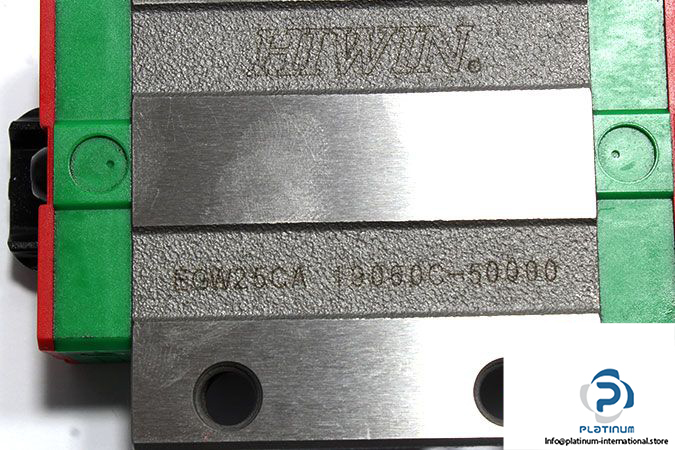

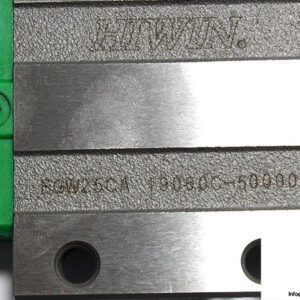

Hiwin EGW25CA Linear Guideway Block
New
In stock20 unitsReady to ship
61,30$
LINEAR GUIDEWAY BLOCK
Hiwin EGW25CA flange-type block from the EG Series with 25 mm size and heavy load design, offering high rigidity and smooth motion for precision linear guide systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN EGW25CA LINEAR GUIDEWAY BLOCK
Part of Hiwin's EG Series, the EGW25CA is a low-profile, flange-type linear guideway block engineered for high rigidity and smooth linear motion. Designed for heavy load applications, it features bottom mounting and precise ball-type movement, making it ideal for compact automation and machine tool setups.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: EGW25CA
MRN: EGW25CA 10060C-50000
| Size | 25 mm |
| Total Height H | 33 mm |
| Block Width W | 73 mm |
| Block Length L | 82.6 mm |
| Block Height | 26 mm |
| Distance Between Holes | 60, 35 mm |
| Basic Load Rating “ Dynamic Cr | 16.2 kN |
| Basic Load Rating “ Static C0r | 32.4 kN |
| Series | EG Series; Low Profile Ball Type Linear Guideway |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
| Block Mounting Type | A; Mounting from Bottom |
