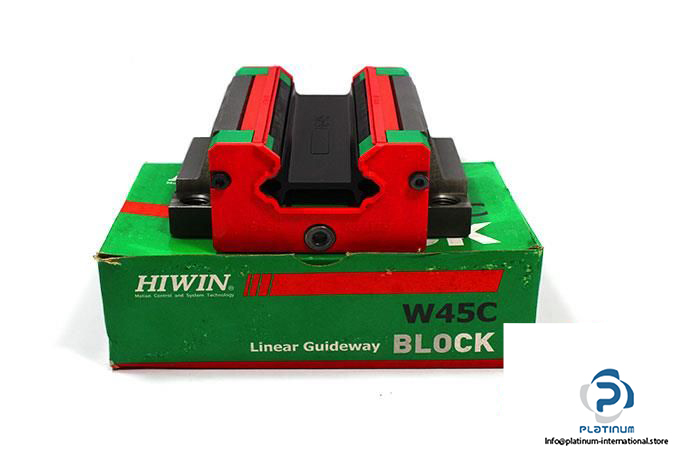

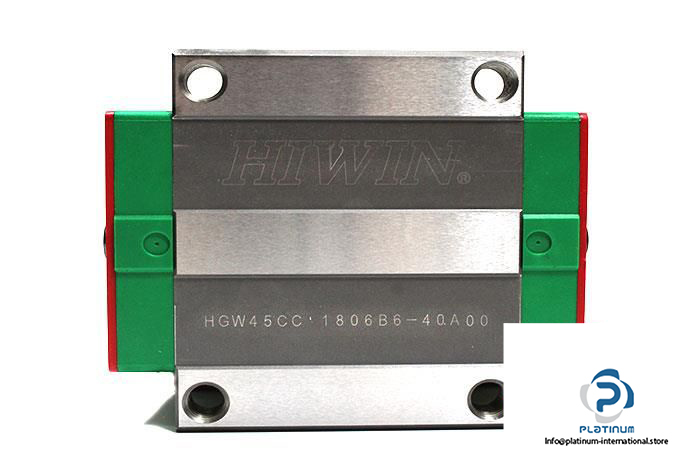

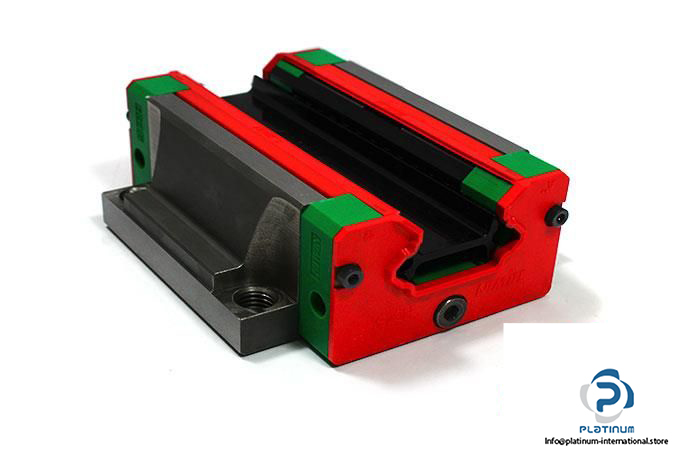

Hiwin HGW45CC Linear Guideway Block
New
In stock51 unitsReady to ship
244,01$
LINEAR GUIDEWAY BLOCK
Heavy-duty linear block from Hiwin, size 45 mm, with top or bottom mounting. Delivers reliable high-load motion support with 103.8 kN dynamic and 146.71 kN static load ratings.103.81806B6-40A0045BlockBottomFlangeGuideGuidewayHeavyHGW45CCHiwinkNLinearLoadmmMNRMotionmountrailTop
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN HGW45CC LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block by Hiwin is built for precise motion control under high loads. Engineered for strength and smooth linear travel, it supports both top and bottom mounting and is ideal for demanding industrial automation applications.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW45CC 1806B6-40A00
| Size | 45 mm |
| Block Height | 50.5 mm |
| System Height | 60 mm |
| Block Width (W) | 120 mm |
| Block Length (L) | 139.4 mm |
| Thread Size | M12 x 35 |
| Distances Between Holes | 100 mm, 80 mm |
| Rail Width | 45 mm |
| Rail Height | 38 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
| Basic Dynamic Load Rating | 103.8 kN |
| Basic Static Load Rating | 146.71 kN |
