Hiwin MGN12CC Linear Guideway Block

In stock12 unitsReady to ship

34,51$

LINEAR GUIDEWAY BLOCK

Compact and durable Hiwin linear block with 12 mm rail size, high load ratings, and precise geometry for demanding linear motion applications in automation and CNC machinery.

Manufacturer
HIWIN
SKU
965343
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

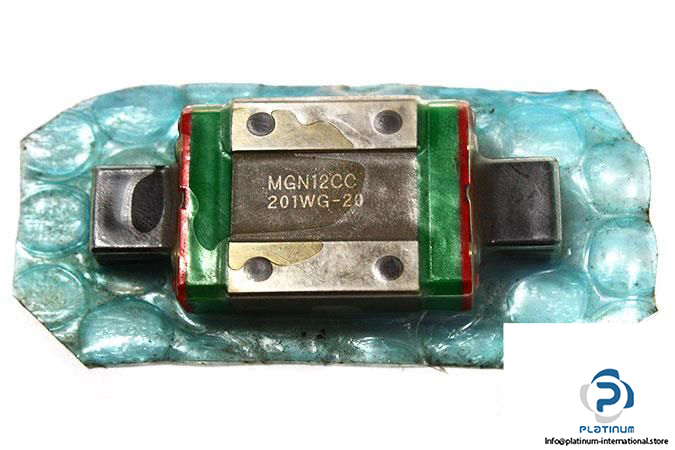

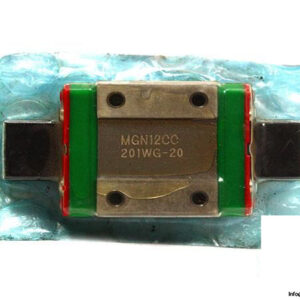

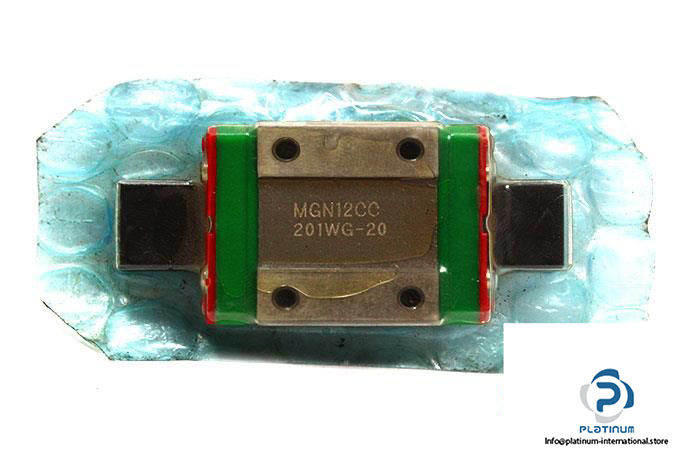

HIWIN MGN12 CC 201WG-20 LINEAR GUIDEWAY BLOCK

This precision linear guideway block from Hiwin is designed for smooth and stable linear motion in compact machinery. Built to handle demanding load conditions with a high dynamic and static load capacity, it ensures optimal performance in automation, CNC, and motion control applications.

Manufacturer: Hiwin

Type: Linear Guideway Block

MNR: MGN12 CC 201WG-20

Size12 mm
Block TypeStandard
System Height (H)13 mm
Block Height (H-H1)10 mm
Block Width (W)27 mm
Block Length (L)34.7 mm
Distances Between Holes20, 15 mm
Mounting Bolt for RailM3 x 8
Basic Dynamic Load Rating (C)2.84 kN
Basic Static Load Rating (C0)3.92 kN
Rail Width12 mm
Rail Height8 mm
