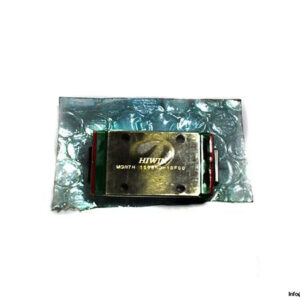

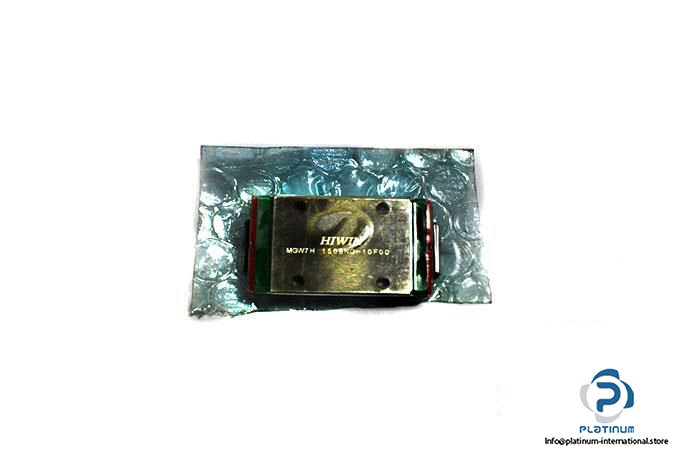

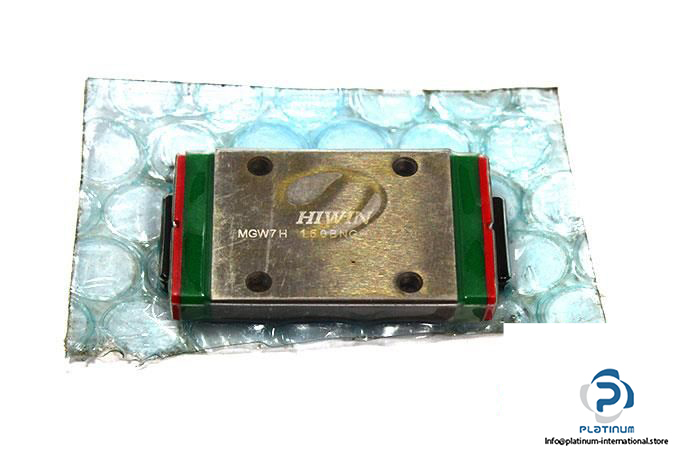

Hiwin MGW7H Linear Guideway Block
New
In stock12 unitsReady to ship
42,25$
LINEAR GUIDEWAY BLOCK
Compact and rigid Hiwin MGW7H linear block with 7 mm size, long type structure, and 1.77 kN dynamic load capacity, ideal for miniature precision motion systems.150BNG-10F007BlockCompactGuideGuidewayHighHiwinLinearlongM3MGW7HMiniaturemmMotionrailrigiditySystemThreadType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN MGW7H LINEAR GUIDEWAY BLOCK
This precision-engineered linear guideway block from Hiwin is designed for applications requiring high rigidity and space-saving dimensions. The MGW7H model features a long block type with a compact system height, making it ideal for miniature linear motion systems where accuracy and load capacity are critical.
Manufacturer: Hiwin
Type: Linear Guideway Block MGW
MNR: MGW7H 150BNG-10F00
| Size | 7 mm |
| Block Type | Long |
| System Height | 9 mm |
| Block Height | 7.1 mm |
| Block Width | 25 mm |
| Block Length | 41 mm |
| Distance Between Holes | 19, 19 mm |
| Rail Width | 14 mm |
| Rail Height | 5.2 mm |
| Thread Size | M3 x 6 |
| Basic Dynamic Load Rating | 1.77 kN |
| Basic Static Load Rating | 3.14 kN |
