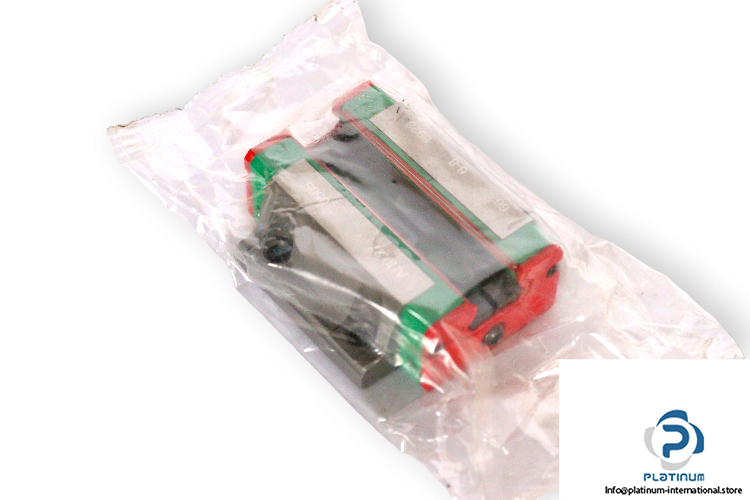

Hiwin QEW15CB Linear Guideway Block
New
In stock4 unitsReady to ship
LINEAR GUIDEWAY BLOCK
Heavy-load flange-type linear block by Hiwin, 15 mm rail size, bottom mounting, high load ratings, and optimized dimensions for smooth and rigid motion in automation systems.151801ZP-60200AutomationBlockBottomFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadM3x16mmmountQEW15CBrailType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN QEW15CB 1801ZP-60200 LINEAR GUIDEWAY BLOCK
This heavy-load linear guideway block from Hiwin is engineered for high rigidity and smooth linear motion in demanding industrial applications. With a flange-type design, bottom mounting configuration, and precise dimensions, it ensures optimal load capacity and system stability in compact automation assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block

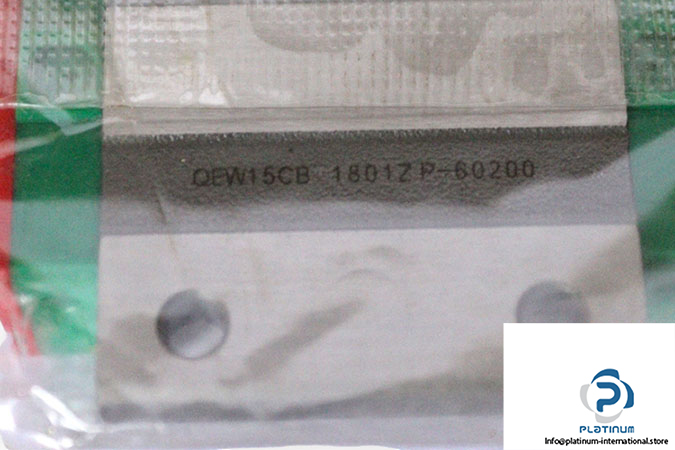

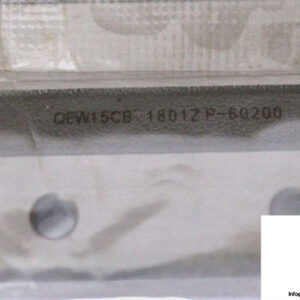

MNR: QEW15CB 1801ZP-60200

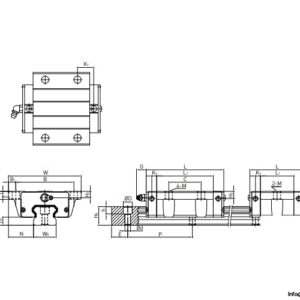

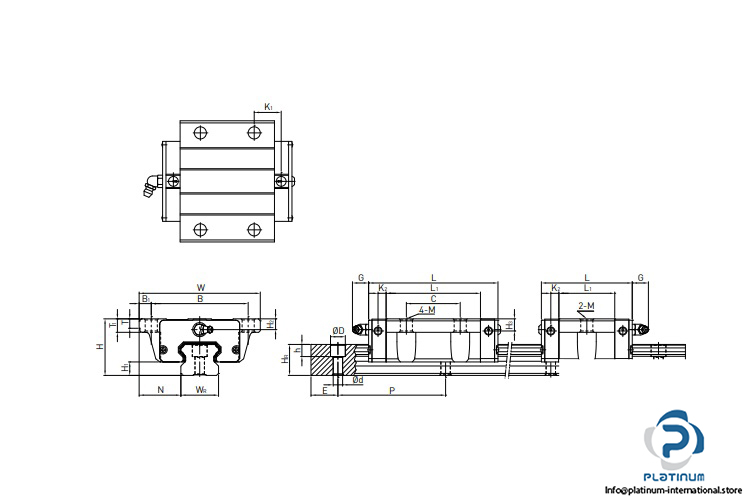

| Size | 15 mm |
| Block Height | 20 mm |
| System Height | 24 mm |
| Block Width (W) | 52 mm |
| Block Length (L) | 56.8 mm |
| Thread Size | M3X16 |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Distance Between Holes | 41 mm, 26 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting | Bottom |
| Basic Dynamic Load Rating | 12.53 kN |
| Basic Static Load Rating | 15.28 kN |
