Hiwin QEW20CA Linear Guideway Block
New
In stock16 unitsReady to ship
54,96$
LINEAR GUIDEWAY BLOCK
Low-profile linear guideway block from HIWIN with 20 mm size and SynchMotion„¢ Technology, optimized for quiet, smooth, and high-load motion applications in compact automation systems.20AutomationBlockFlangeGuideGuidewayHeavyHiwinLinearLoadlowmmMotionProfileQEQEW20CArailSeriesSynchMotionType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

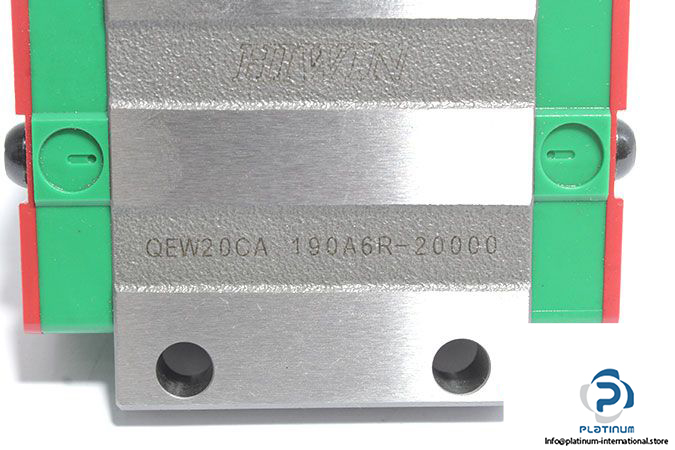

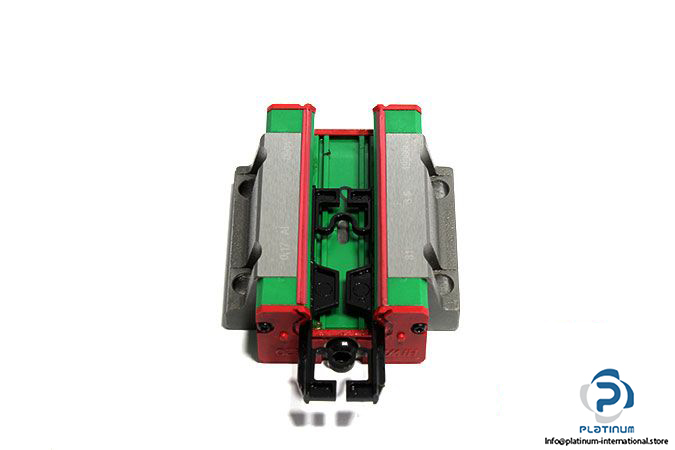

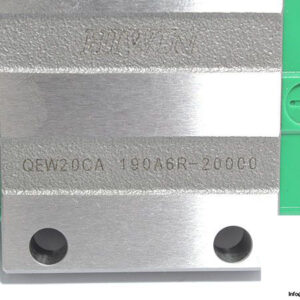

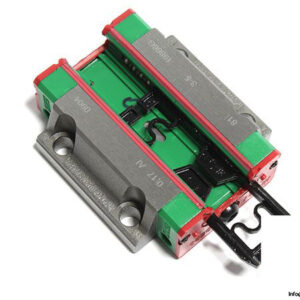

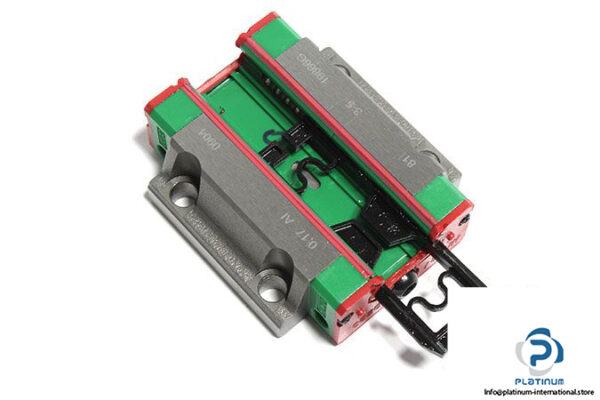

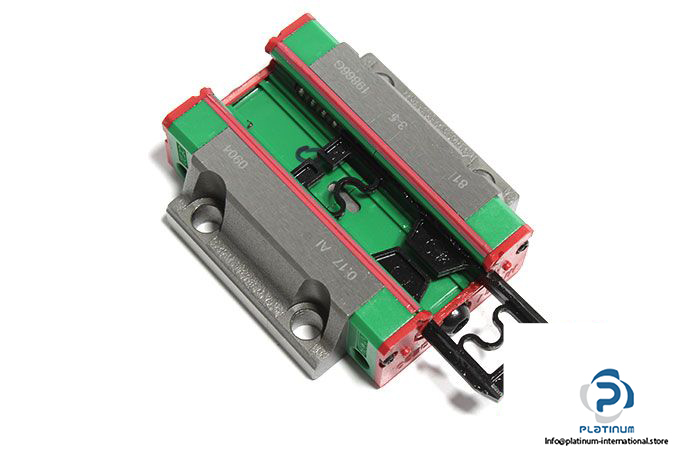

HIWIN QEW20CA LINEAR GUIDEWAY BLOCK
The HIWIN QEW20CA is a precision-engineered low-profile linear guideway block designed for heavy-load applications. Featuring SynchMotion„¢ Technology, it ensures smooth, quiet motion with minimal friction, making it ideal for high-performance automation systems.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: QEW20CA
MRN: QEW20CA 190A6R-20000
Basic Load Ratings, Linear:
| Size | 20 mm |
| Total Height H | 28 mm |
| Block Width W | 59 mm |
| Block Length L | 69.1 mm |
| Block Height | 22 mm |
| Distance Between Holes | 49 mm, 32 mm |
| Dynamic Cr | 16.5 kN |
| Static C0r | 20.2 kN |
| Series | QE Series; Low Profile Linear Guideway, with SynchMotion Technology |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
