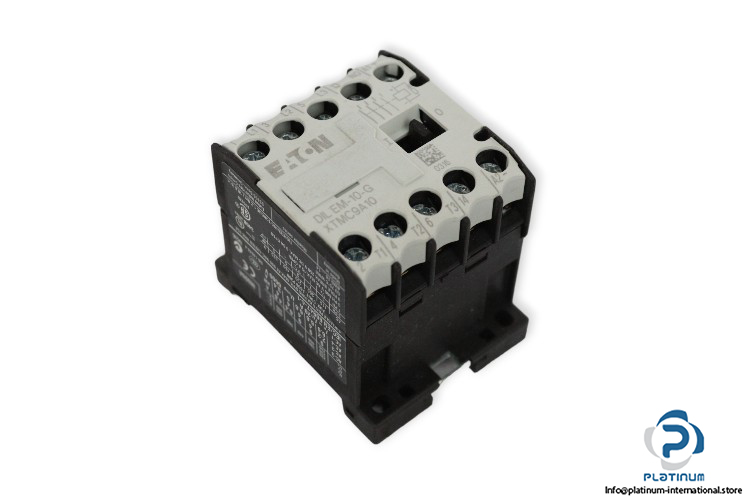

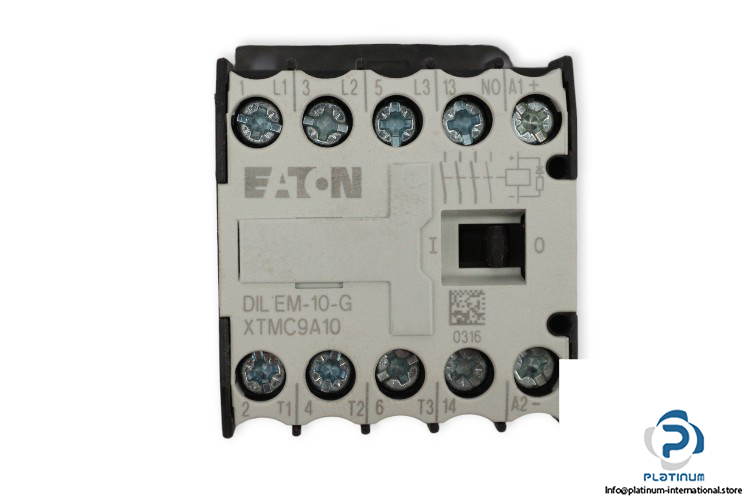

Eaton DILEM-10-G Contactor

Manufacturer: Eaton
Type: Contactor/ Mini Contactor
Model: DILEM10G
Cat No: XTMC9A10TD
Part No.: 010213

Coil Voltage: 24 V DC
No. of Poles: 3
Contact Configuration: 1 Normally Open (NO)
Contact Voltage: 220 … 690 V AC
Contact Current: 9 … 3.4 A
Tightening Torque: 1.2 Nm
Impulse withstand Voltage: 6000 V
Thermal Current: 20 A
Power Consumption:
4 kW (380 … 400 V DC)
2.2 kW (220 … 240 V AC)
4 kW (440 … 690 V AC)
Tightening Toque: 1.2 Nm
Degree of protection: IP20
Operating Temperature: -25 … 50  °C
Dimension: 54 X 58 X 45 mm
MSAA01021303W16
