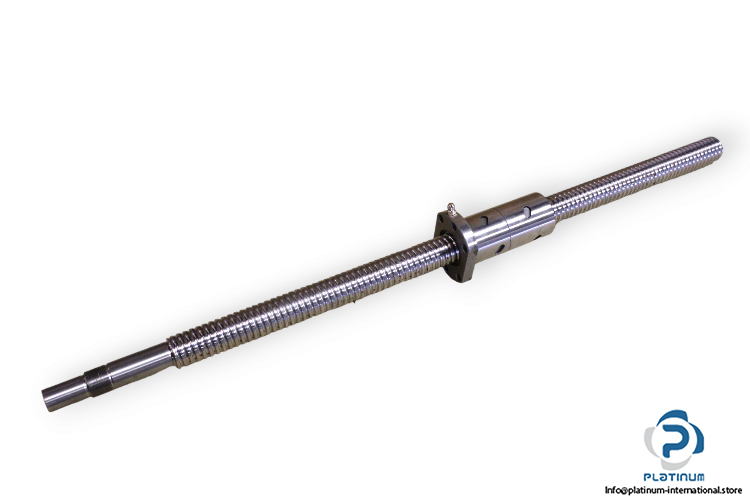

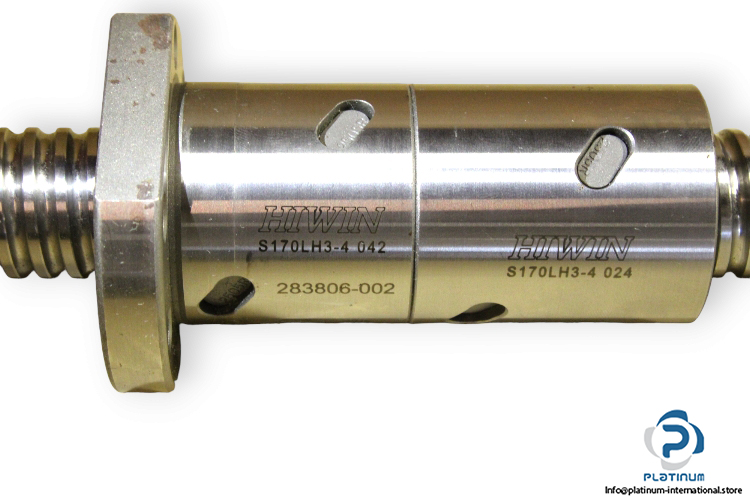

Hiwin S170LH3-4 Ball Screw
New
In stock2 unitsReady to ship
FLANGED DOUBLE NUT BALL SCREW
High-precision ball screw with 25 mm nominal diameter and 5 mm lead, designed for high-load linear motion in automation and CNC systems, featuring durable flange geometry and extended shaft length.255BallCNCdiameterDoubleDriveflangedHighHiwinIndustrialleadLinearLoadmmMotionnutR25-05K4-DBBscrewshaft
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

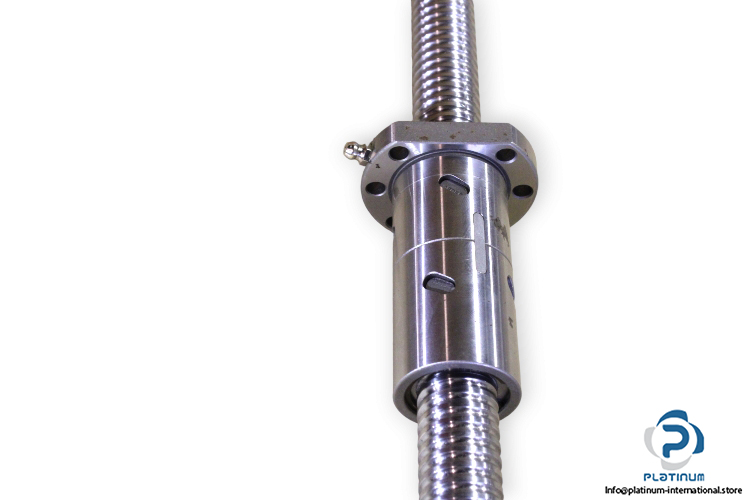

HIWIN R25-05K4-DBB FLANGED DOUBLE NUT BALL SCREW
This precision-engineered flanged double nut ball screw is designed for high-load linear motion systems. With a 25 mm nominal diameter, 5 mm lead, and robust load ratings, it ensures reliable performance in demanding industrial automation and CNC environments.
Manufacturer: Hiwin
Type: Flanged Double Nut Ball Screw
Model: R25-05K4-DBB

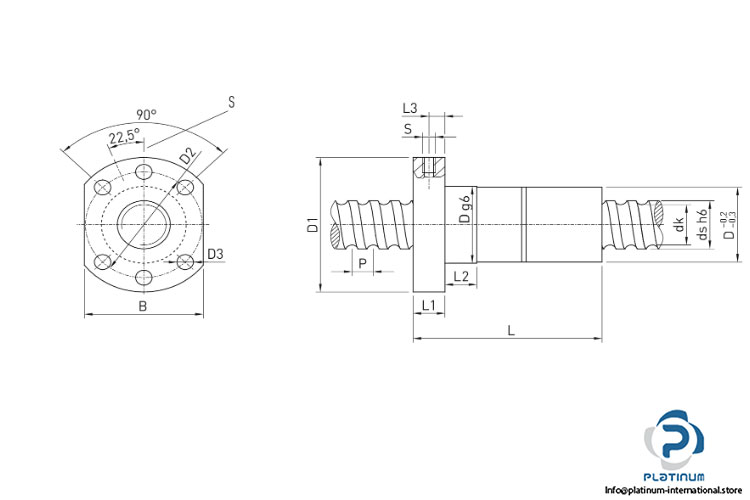

| Size | 25 |
| Nominal Diameter | 25 mm |
| Lead | 5 mm |
| Direction of Lead | Right-Hand Thread |
| Flange Diameter D1 | 62 mm |
| Nut Diameter D | 40 mm |
| Nut Length L | 96 mm |
| Flange Thickness L1 | 10 mm |
| L2 | 10 mm |
| B | 48 mm |
| D2 | 51 mm |
| D3 | 6.6 mm |
| Dynamic Load Rating | 19200 N |
| Static Load Rating | 29800 N |
| Shaft Path Length | 550 mm |
| Shaft Total Length | 640 mm |
