Hohner 70-140 CA-1024 Absolute Encoder
Used
In stock1 unitReady to ship
160,00$
ABSOLUTE ENCODER
Hohner 70-140-CA-1024 is a high-resolution absolute encoder with stainless steel solid shaft, IP54 protection, and 1024 steps, suitable for industrial environments and automation systems.102470-140-CA-1024AbsoluteAutomationEncoderHighHohnerHousingIndustrialIP54OutputPNPResolutionshaftstainlessSteelStepZinc
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

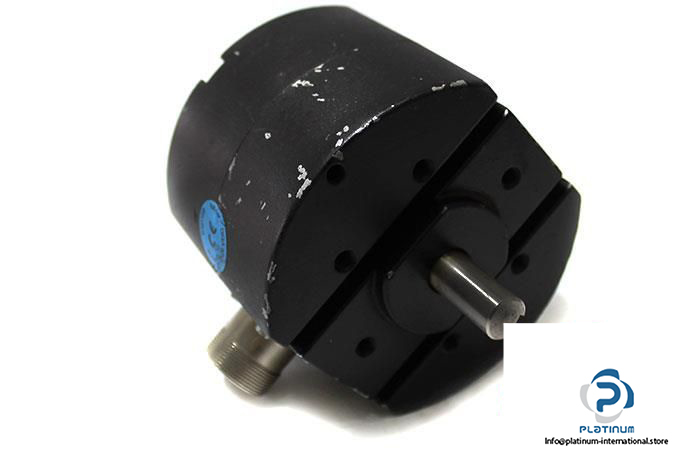

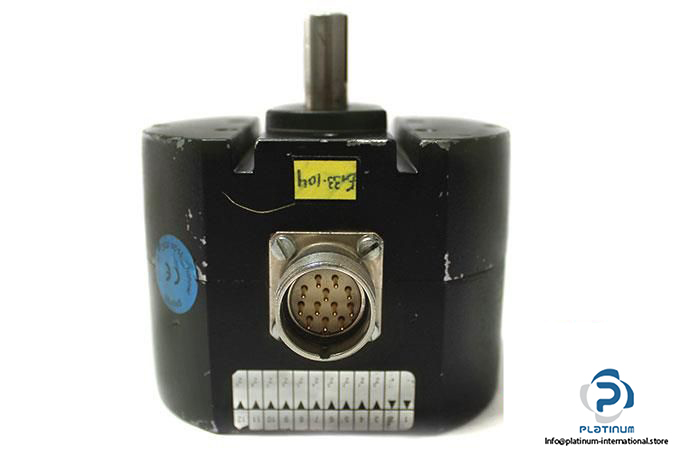

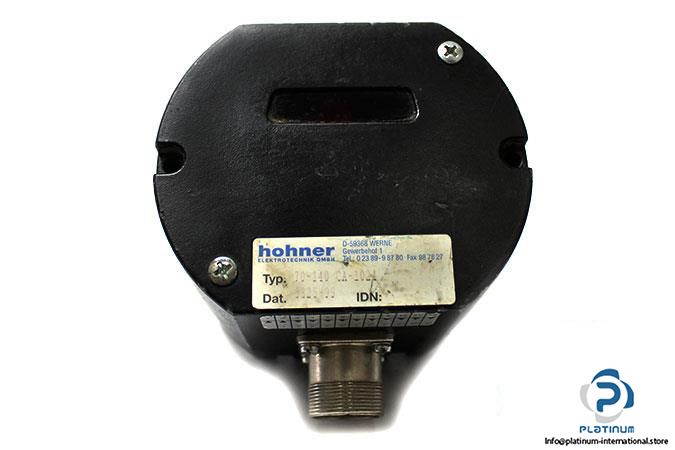

HOHNER 70-140-CA-1024 ABSOLUTE ENCODER
Engineered for precise motion control in industrial automation systems, the Hohner 70-140-CA-1024 Absolute Encoder provides dependable performance with a compact, robust design. Featuring a stainless steel solid shaft and high-resolution output, this encoder is ideal for high-speed and harsh environment applications.

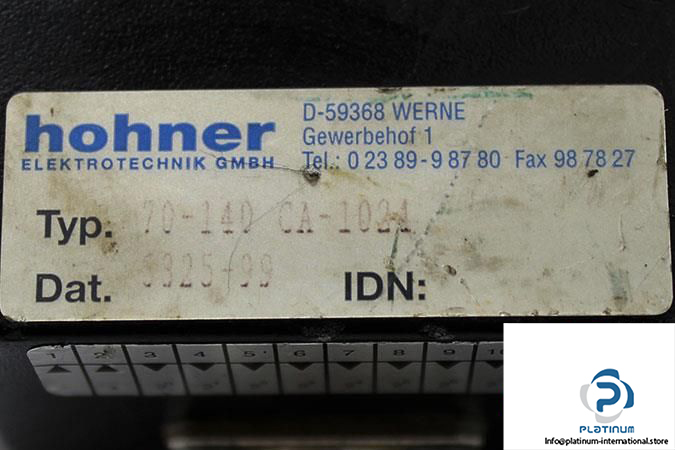

Manufacturer: HOHNER
Type: Absolute Encoder
Model: 70-140-CA-1024
REF No.: 5325-99
| Shaft Diameter | 6 mm |
| Shaft Design | Stainless Steel Solid |
| Resolution | 1024 |
| Voltage Supply | 10 / 30 VDC |
| Output Current | 40 mA |
| Output Circuit | PNP |
| Counting Direction | Counting Direction Switchover |
| Output Code | Grey |
| Max Speed | 6,000 U/min |
| Max Pulse Frequency | 25 kHz |
| Protection Class | IP 54 |
| Housing Material | Zinc Die-Casting |
| Operating Temperature | -30 / 70 °C |
