Hubner Berlin POG 9 D 500 Incremental Encoder
Used
In stock23 unitsReady to ship
399,99$
INCREMENTAL ENCODER
Hubner Berlin POG9D500 is a robust 500 ppr optical incremental encoder with HTL output, 11 mm solid shaft, and IP56 protection. Ideal for high-speed industrial applications up to 12000 rpm.500BerlinBoxEncoderHTLHubnerIncrementalIndustrialIP56OpticalOutputPOG9D500PPRRatedshaftSolidterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

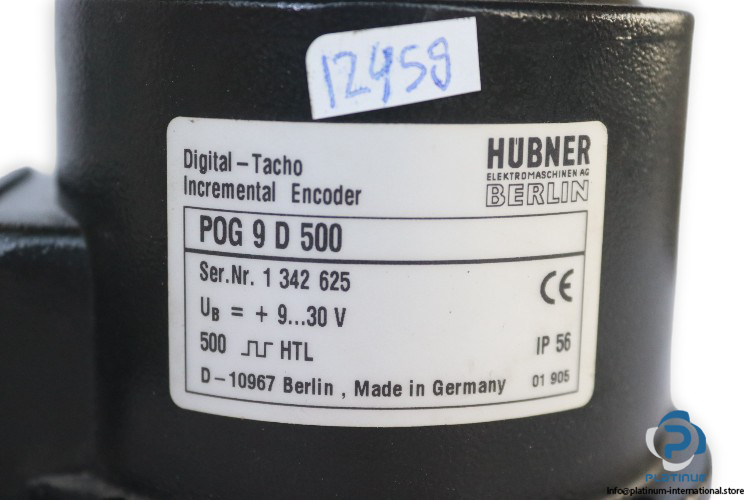

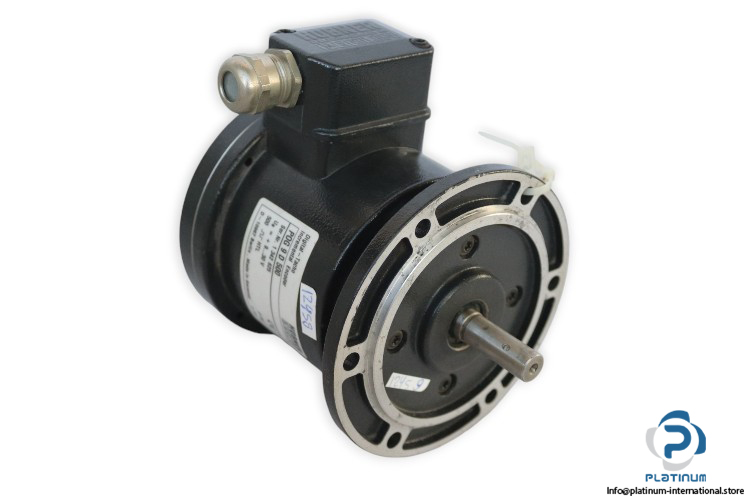

HUBNER BERLIN POG9D500 INCREMENTAL ENCODER
The POG9D500 from Hubner Berlin is a high-precision incremental encoder built for demanding industrial environments. Featuring a robust aluminum housing, stainless steel shaft, and HTL output, this encoder ensures accurate speed and position feedback under extreme conditions.
Manufacturer: Hubner Berlin
Type: Incremental Encoder
Model: POG9D500
Serial No.: 1342625
| Power Supply | 9 / 30 V DC |
| Current Consumption | ‰¤ 100 mA |
| Operating Principle | Incremental |
| Shaft Type | Solid Shaft |
| Flange | EURO Flange B10 |
| Sensing Method | Optical |
| Output Stage | HTL |
| Output Frequency | ‰¤ 120 kHz |
| Resolution | 500 ppr |
| Operating Speed | ‰¤ 12000 rpm |
| Shaft Diameter | 11 mm |
| Flange Size | ø115 mm |
| Protection Degree | IP56 |
| Material | Housing: Aluminum Die-Cast, Shaft: Stainless Steel |
| Connection | Terminal Box |
| Operating Temperature | -30 / +100 °C |
