IFM IE5072 / IEB3001-BPOG Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No: IE5072

MRN: IEB3001-BPOG



Sensing Range: 1 mm

Operating Voltage: 10 … 36 V DC

Operating Current: 200 mA

Switching Output: Normally Open

Electrical Design: PNP

Switching Frequency: 750 Hz

Mounting: Flush Mountable

Protection Class: III

Protection: IP67

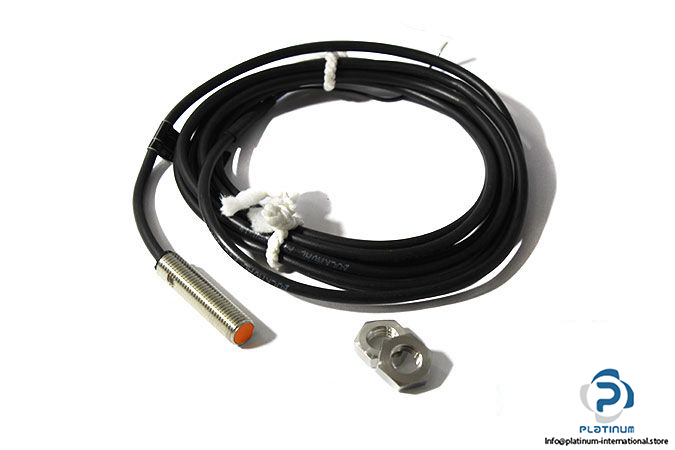

Electrical Connection: Cable 2m, 3-Wires

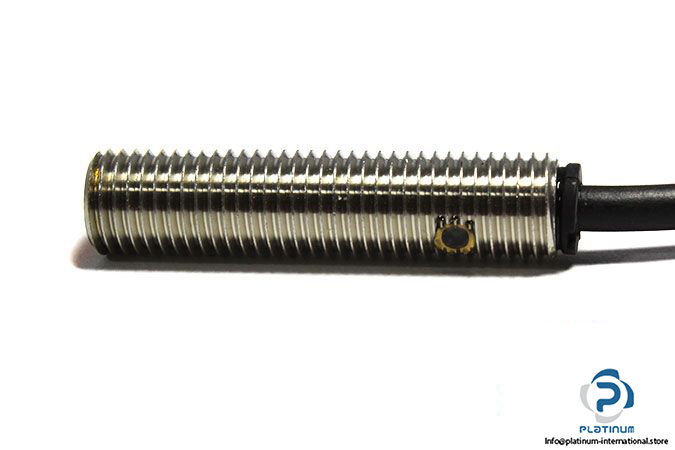

Diameter, Housing Length: 8, 35 mm

Ambient Temperature: -25 … 80 °C

Housing Materials: Brass White Bronze Coated

Weight: 0.05 kg
