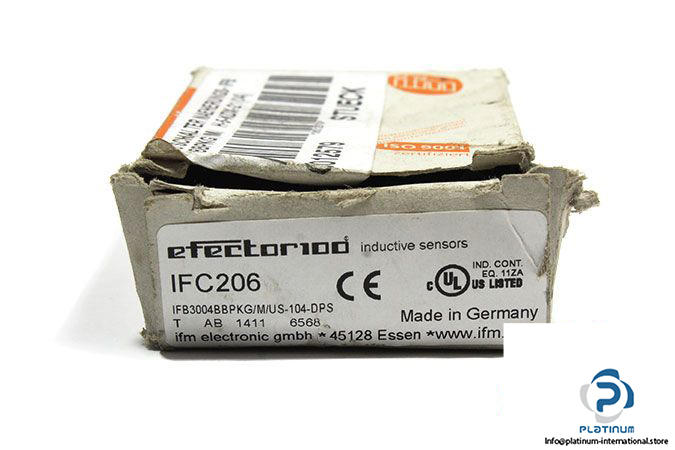

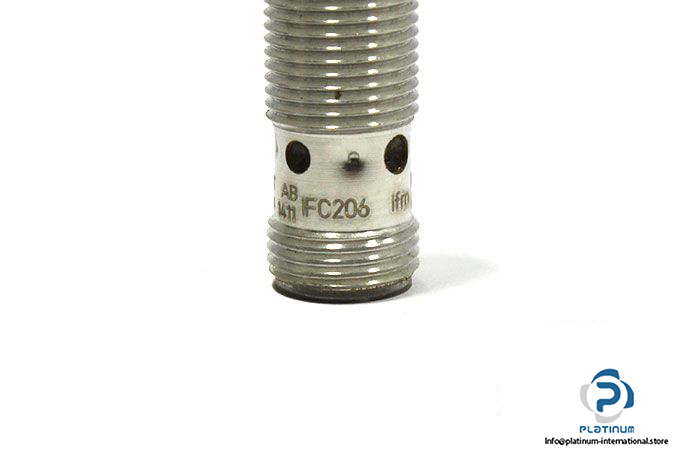

IFM IFC206 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IFC206

MRN: IFB3004BBPKG/M/US-104-DPS

Application: Oils and Coolants

Sensing Range: 4 mm

Operating Distance: 0 … 3.25

Operating Voltage: 10 … 36 V DC

Switching Frequency DC: 700 Hz

Switching Output Current: 100 mA DC

Max. Voltage Drop: 2.5 V

Minimum Load Current: 4 mA

Electrical Design: PNP

Output Function: Normally Open

Protection Class: II

Enclosure Rating: IP68

Housing:  Threaded Type

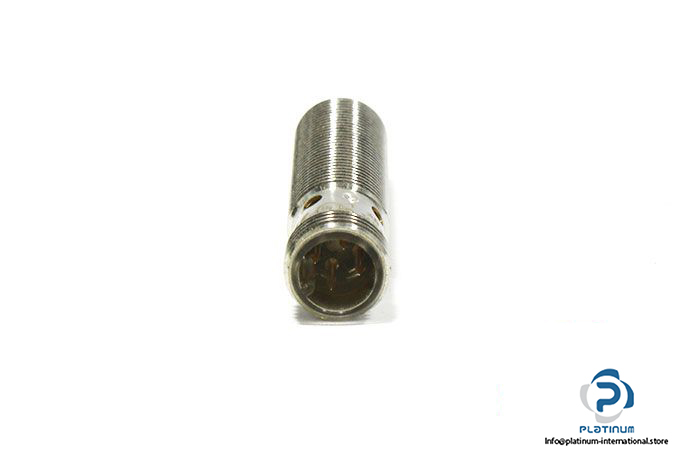

Electrical Connection: M12 4-Pin

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: 12, 45 mm

Material: Brass White Bronze Coated; Sensing Face: Ceramics

Mounting: Flush Mountable

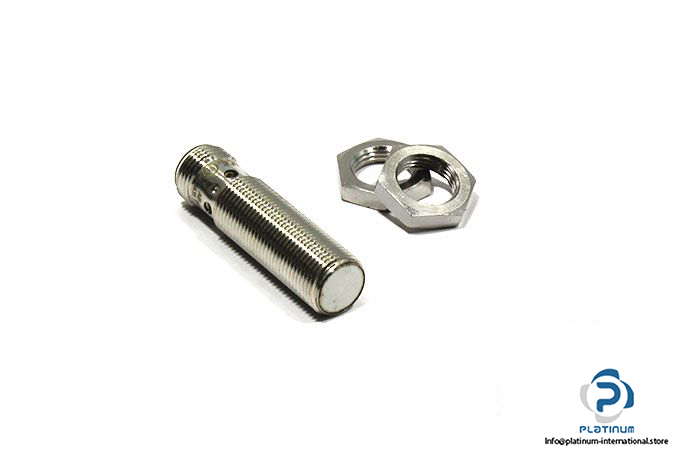

Supplied Accessories: Lock Nuts: 2
