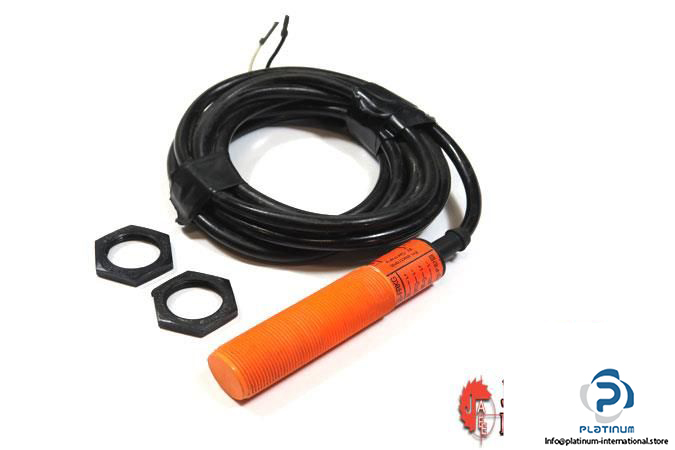

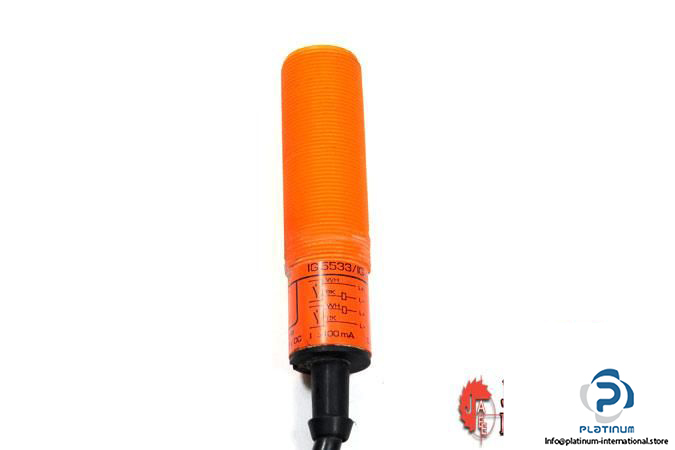

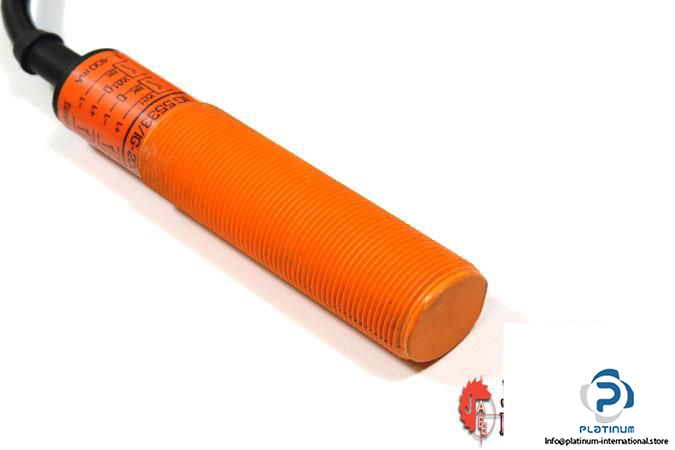

IFM IG5533 Inductive Sensor
Used
Available on request
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: IFM
Type: INDUCTIVE SENSOR
Part No.: IG5533
MRN: IG-2008-FRKG
Sensing Range: 8 mm
Real Sensing Range: 8 ± 10 % mm
Operating Distance: 0 … 6.5 mm
Operating Voltage: 10 … 55 V DC
Voltage Drop: 4.6 V DC
Switching output current: 400 mA DC
Minimum load current min.: 4 mA
Switching frequency: 300 Hz DC

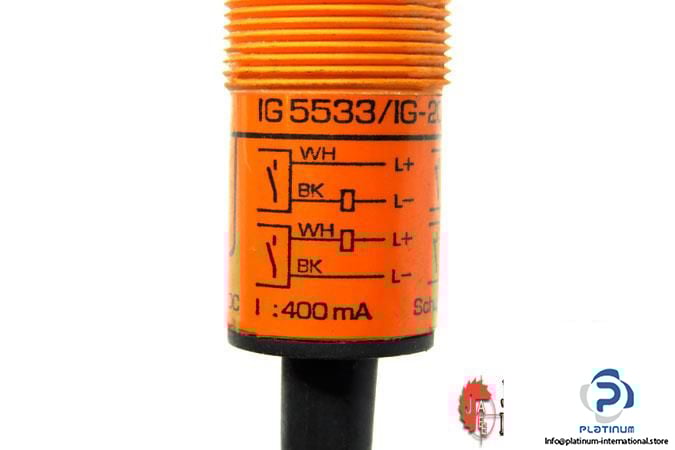

Electrical Design: PNP/NPN
Output: normally open / normally closed; (selectable)
Connector type, length: PVC cable, 2m
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -25 … 80 °C
Diameter, Housing length: 18, 80 mm
Material: PBT
Mounting: Non-flush mountable
Weight: 103 g
Supplied Accessories: 2 lock nuts
Condition: Used
