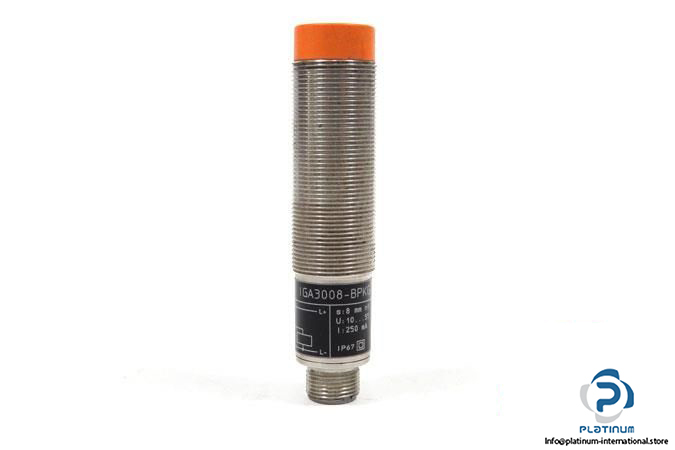

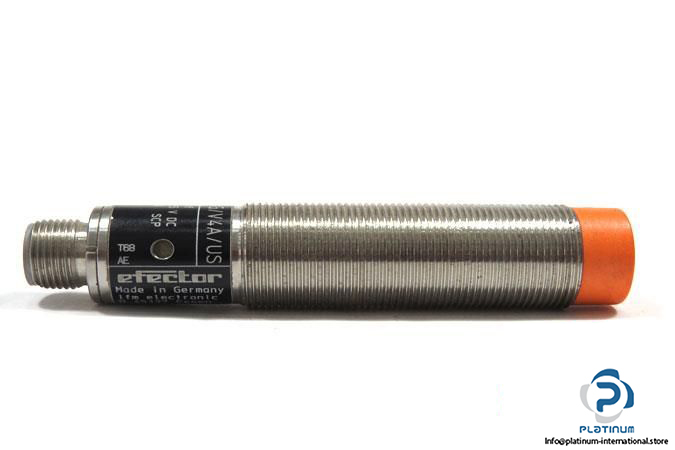

IFM IG5602 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

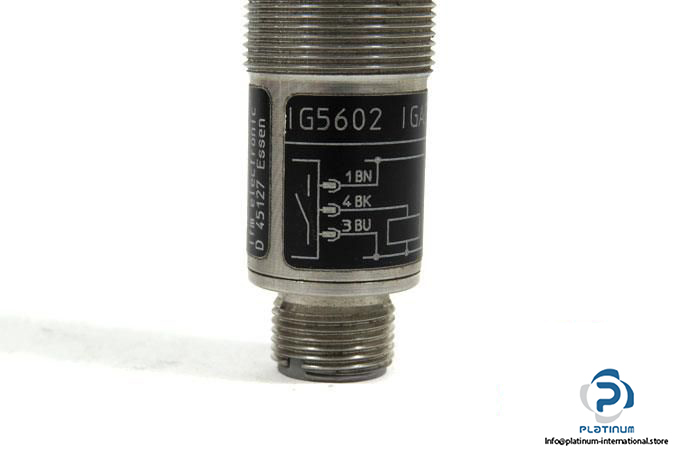

Part No.: IG5602

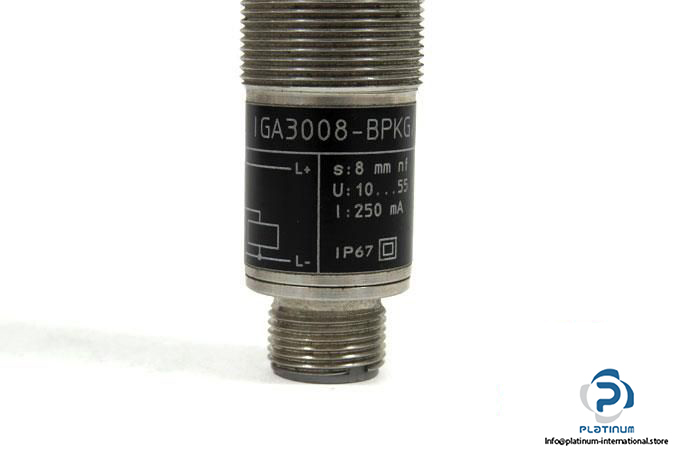

MRN: IGA3008-BPKG/V4A/US

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10% mm

Operating Distance: 0 … 6.48 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop Max.: 2.5 V DC

Switching output Current: 250 mA DC

Switching Frequency: 300 Hz

Electrical Design: PNP

Output Function: Normally Open

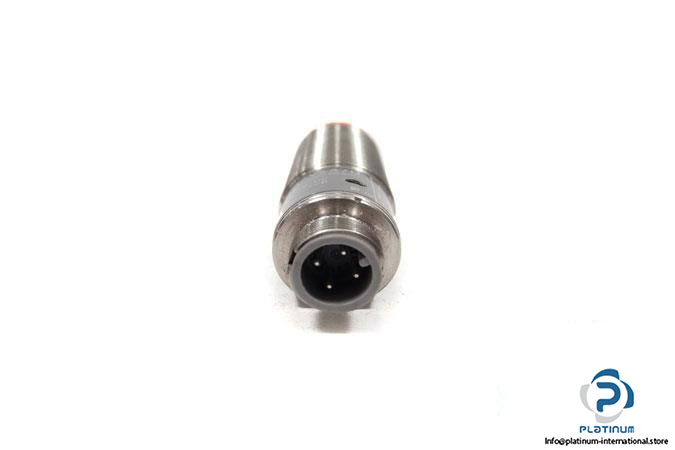

Connector Type: M12 Connector

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 …80°C

Diameter, Housing Length: 18 , 90 mm

Material: Stainless Steel , Sensing face: PBT

Mounting: Non-Flush Mountable

Weight: 66.1 g
