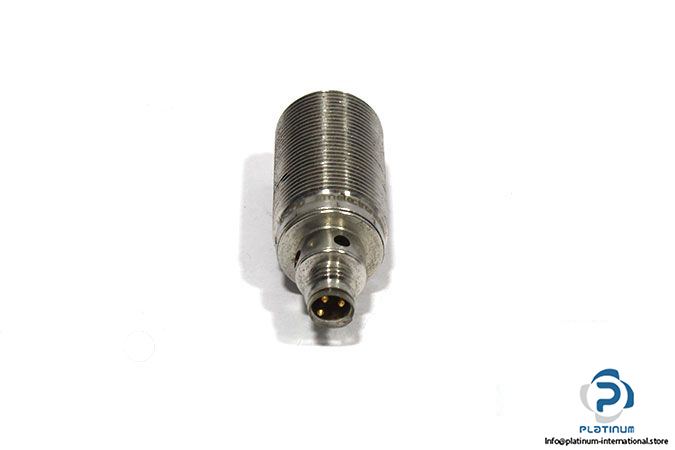

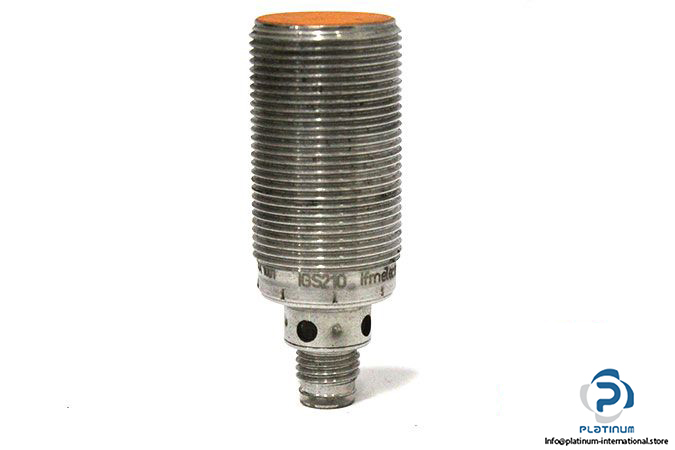

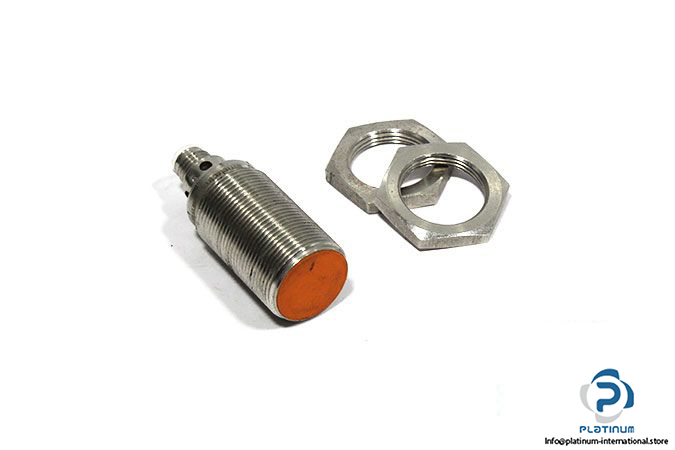

IFM IGS210 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IGS210

MRN: IGB3008-BBPKG/M/AS-514-TPS

Sensing Range: 8 mm

Operating Voltage: 10 … 36 V DC

Switching Frequency DC: 400 Hz

Current Rating: 100 mA DC

Electrical Design: PNP

Output Function: Normally Open

Protection Class: III

Enclosure Rating: IP67

Housing:  Threaded Type

Electrical Connection: M8, 3-Pin

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: 18, 46 mm

Material: Brass White Bronze Coated; Sensing Face: PBT

Mounting: Flush Mountable

Weight: 0.04 kg
