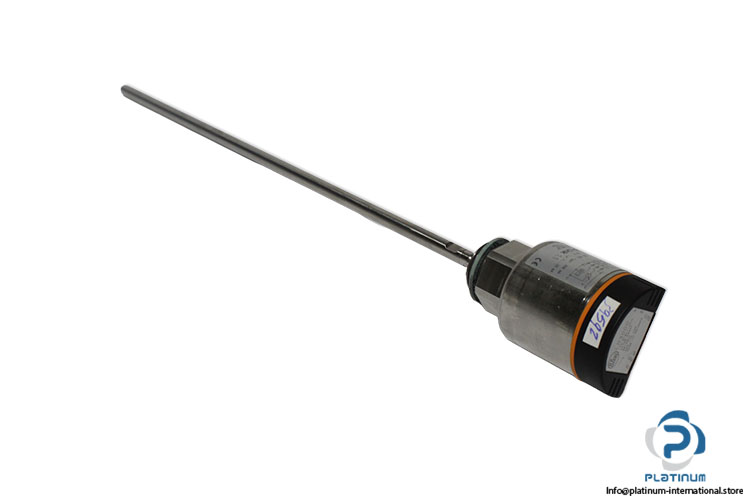

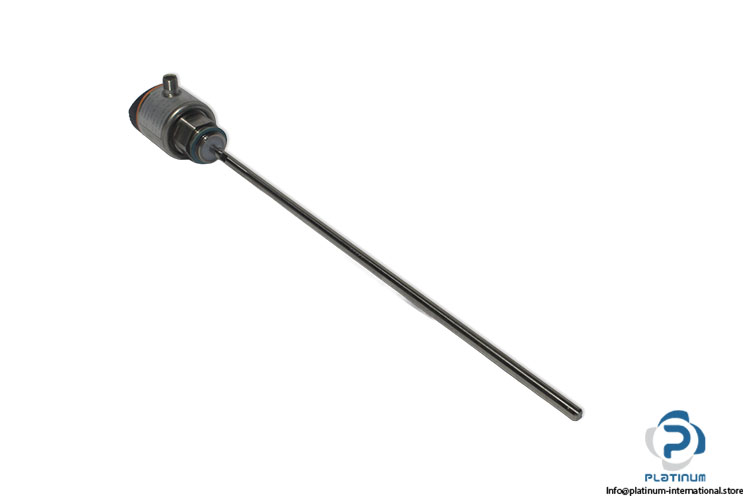

IFM LR3000 Continuous Level Sensor
Used
In stock1 unitReady to ship
Continuous Level Sensor The IFM LR3000 is a guided wave radar level sensor for continuous liquid measurement, featuring PNP switching, analogue outputs, IO-Link communication, and IP67 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | LR0000B-BR34AMPKG/US |
| Number of digital outputs | 1 |
| Number of analogue outputs | 1 |
| Probe length L[mm] | 100...1600 |
| Process connection | threaded connection G 3/4 external thread |
| Special feature | Gold-plated contacts |
| Application | for industrial applications |
| Media | Liquids |
| Dielectric constant of the medium | 1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation) |
| Recommended media | water; hydrous media; oils; oil-based media |
| Cannot be used for | See the operating instructions, chapter "Function and features". |
| Process temperature[°C] | -25...80; (90 < 1 h ; see note under remarks) |
| Pressure rating[bar] | 16 |
| Vacuum resistance[mbar] | -1000 |
| MAWP for applications according to CRN[bar] | 16 |
| Operating voltage[V] | 18...30 DC |
| Current consumption[mA] | 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | < 3 |
| Measuring principle | guided wave radar |
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; IO-Link |
| Electrical design | PNP |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Analogue current output[mA] | 4...20, invertible; (scalable) |
| Max. load[O] | 500 |
| Analogue voltage output[V] | 0...10, invertible; (scalable) |
| Min. load resistance[O] | 2000 |
| Active range A[mm] | L-40; (when set to oil and oil based media: L-60) |
| Inactive range I1 / I2[mm] | 30 / 10; (when set to oil and oil based media: 30 / 30) |
| Sampling rate[Hz] | 4 |
| Set point SP[mm] | 15...L-30 |
| Note on setpoint SP | when set to oil and oil based media: 35...L-30 |
| Reset point rP[mm] | 10... L-35 |
| Note on reset point Rp | when set to oil and oil based media: 30...L-35 |
| In steps of[mm] | 5 |
| Hysteresis[mm] | 5 |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Ambient temperature[°C] | -25...60 |
| Protection | IP 67 |
| Dimensions[mm] | dia 50 / L = 99 |
| Materials | stainless steel (304/1.4301); stainless steel (316L/1.4404); FKM; PBT; PC; PEI; TPE-V |

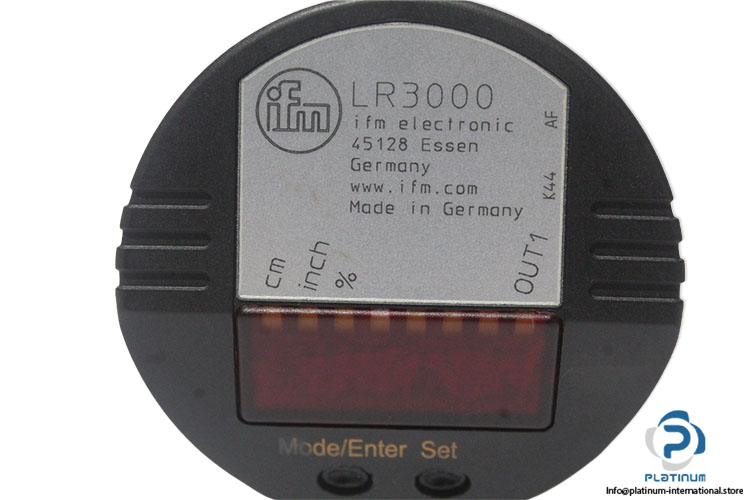

| Display unit | 3 x LED, green |
| switching status | 1 x LED, yellow |
| Level | alphanumeric display, 4-digit |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101009 |
| Weight | 0,39 |
