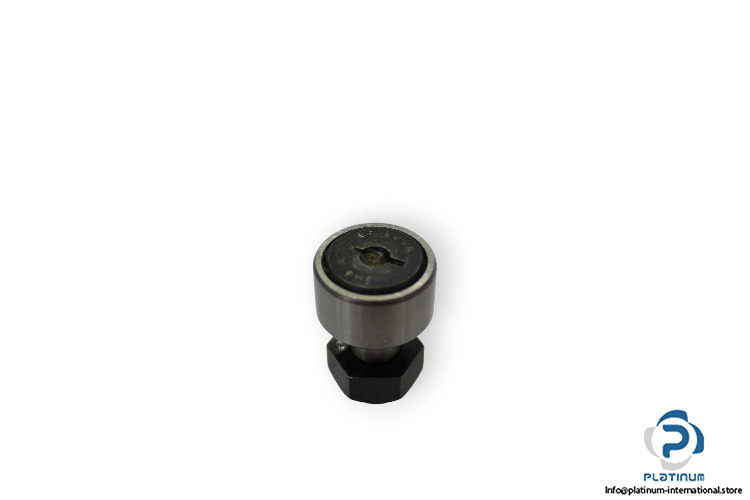

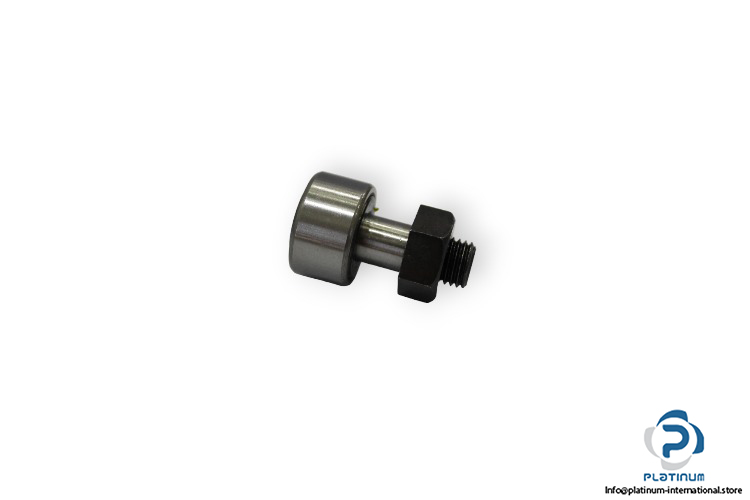

IKO CF10 UUR Stud Type Track Roller

Manufacturer: IKO
Type: Standard Type Cam Followers
Model: CF 10 UUR

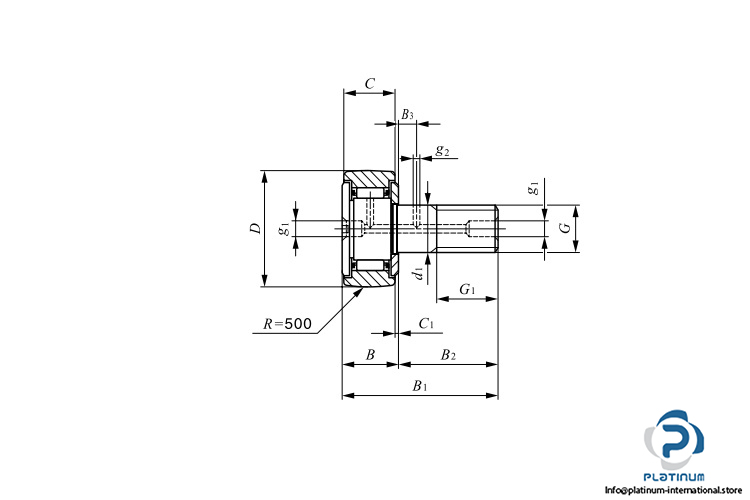

Dimensions
Outside diameter D: 22 mm
Stud diameter d1: 10 mm
Total length B₁: 36.2 mm
Width outer ring C: 12 mm
Thread stud G: M10X1.25
B: 13.2 mm
rs min: 0.3
C1: 0.6 mm
Basic load ratings:
Dynamic C: 5430 N
Static C₀: 6890 N
Maximum tightening torque: 13.8 Nm
Maximum allowable static load: 6890 N
Roller guide method: With cage type
sealing: UU, with Seal Type incorporates seals in the narrow clearances
Stud head shape type: With screwdriver slot
Shape of outer ring outside surface: R, With crowned outer ring
