IKO Lwht 45 Linear Guideway Block
Used
In stock1 unitReady to ship
122,22$
Linear Guideway Block
The IKO LWHT45 flange-type linear guideway block offers high rigidity and precision for CNC and industrial automation systems. With a 45 mm size and robust load ratings, it ensures smooth and accurate motion performance.AutomationbearingBlockCNCComponentDutyEquipmentFlangeGuideGuidewayHeavyIKOIndustrialLinearLWHT45MachineMotionpartPrecisionType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

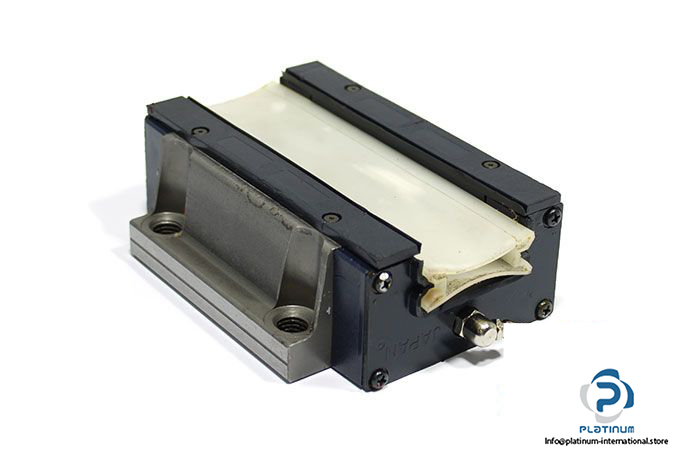

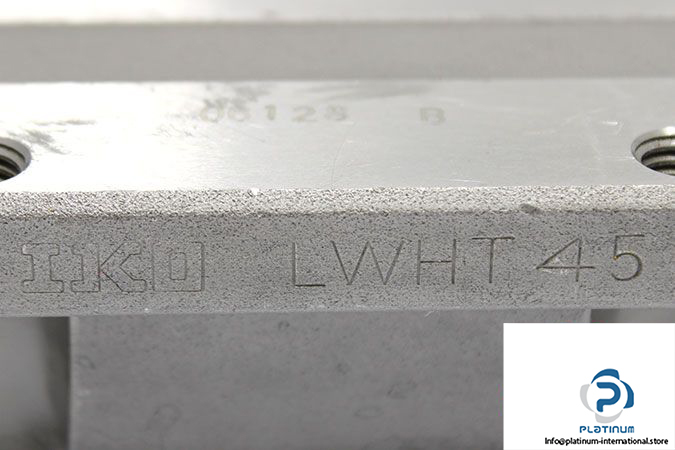

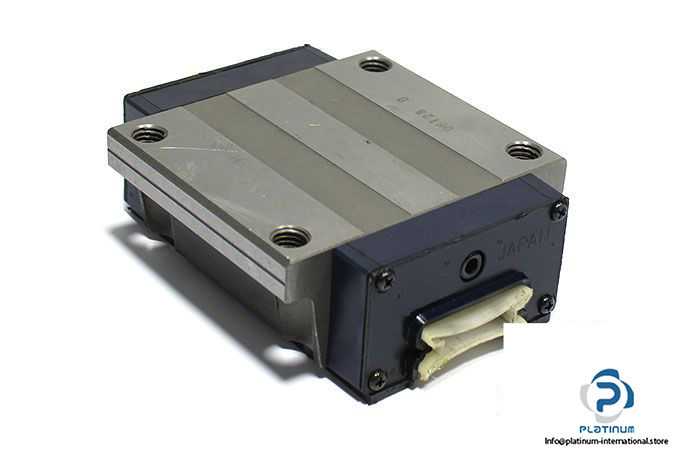

IKO LWHT45 Linear Guideway Block
The IKO LWHT45 Linear Guideway Block is a precision motion component designed for high-rigidity and smooth linear movement. Its flange-type design and standard slide-unit length provide superior stability and load capacity, making it ideal for CNC machinery, automation lines, and heavy-duty positioning systems.
Manufacturer: IKO
Type: Linear Guideway Block
Model: LWHT45
Size: 45

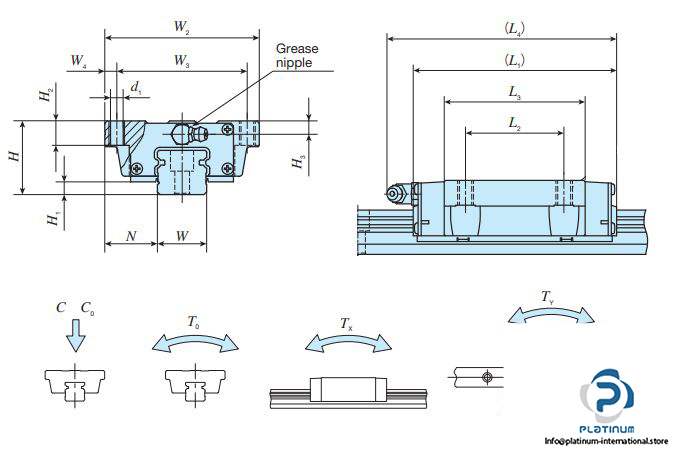

| Basic Dynamic Load Rating (C) | 74 600 N |
| Basic Static Load Rating (C‚) | 80 200 N |
| Static Moment Rating (X axis T‚) | 1 610 Nm |
| Static Moment Rating (Y axis Tᵧ) | 1 060 Nm |
| Static Moment Rating (Z axis T‚“) | 1 150 Nm |
| Block Type | Flange Type |
| Length of Slide Unit | Standard |
| Total Height (H) | 60 mm |
| Block Width (W2) | 120 mm |
| Block Length (L1) | 147 mm |
| W3 | 100 mm |
| L2 | 80 mm |
