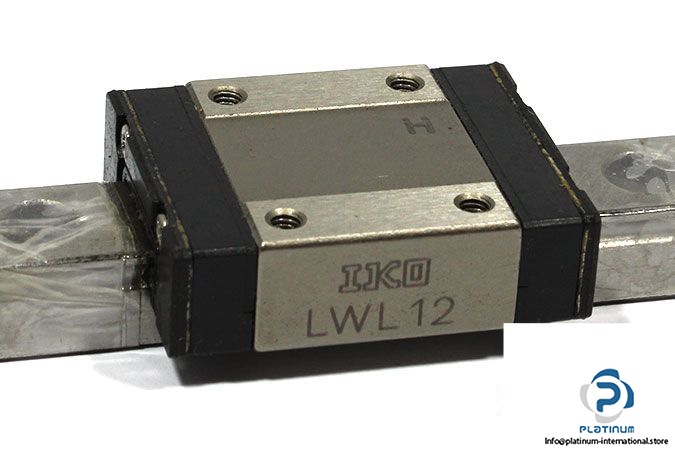

IKO LWL12 Linear Guideway Block

Manufacturer: IKO

Type: Linear Guideway Block

Model: LWL 12

Size: 12

Basic Load Ratings:

Dynamic C: 3330 N

Static C₀: 4290 N

Block Type: Square Type

Structure: Non-Retained Type

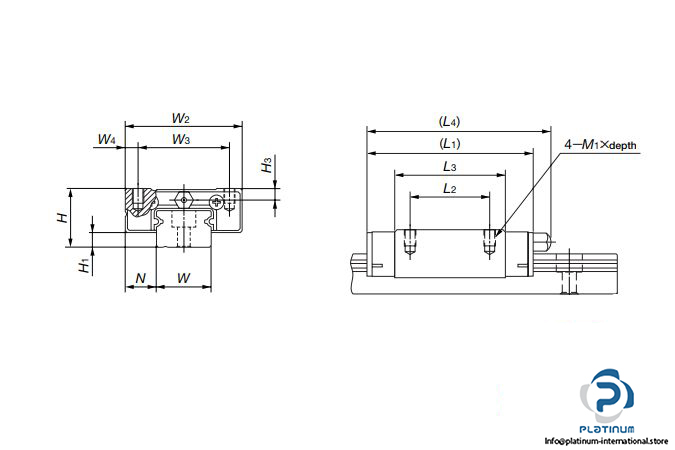

Dimensions

Total Height H: 13 mm

Block Width W₂: 27 mm

Block Length L₁: 34 mm

W₃: 20 mm

L₂: 15 mm

Block Weight: 0.04 kg

Track rail Weight (per 100 mm): 0.08 kg

Rail available on request from 50 mm to 600 mm
