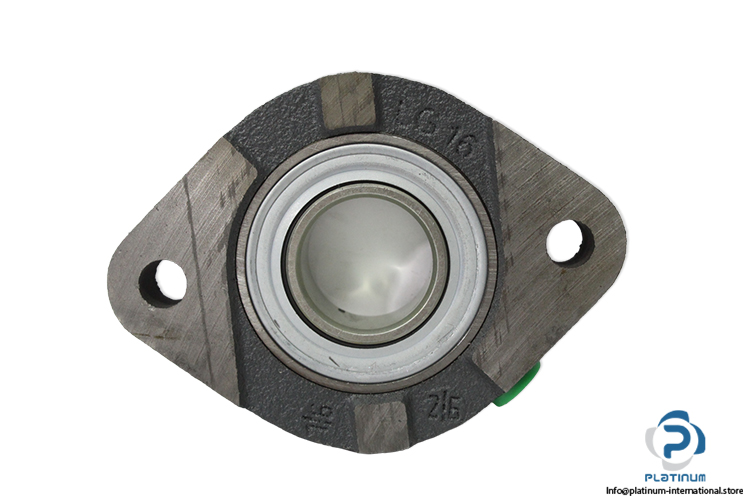

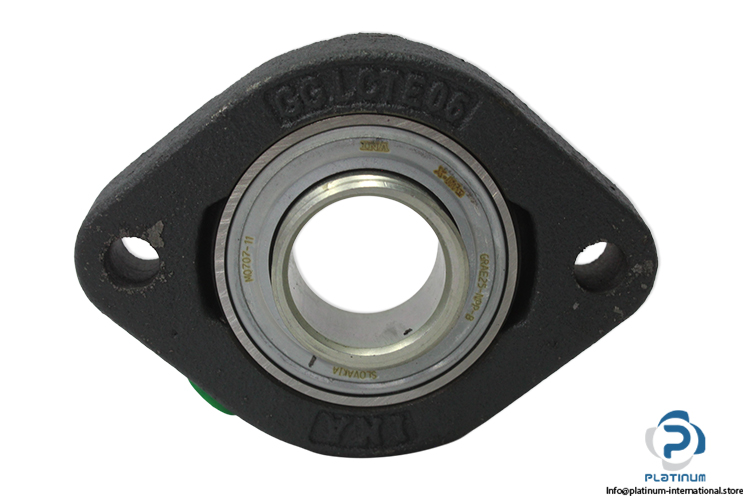

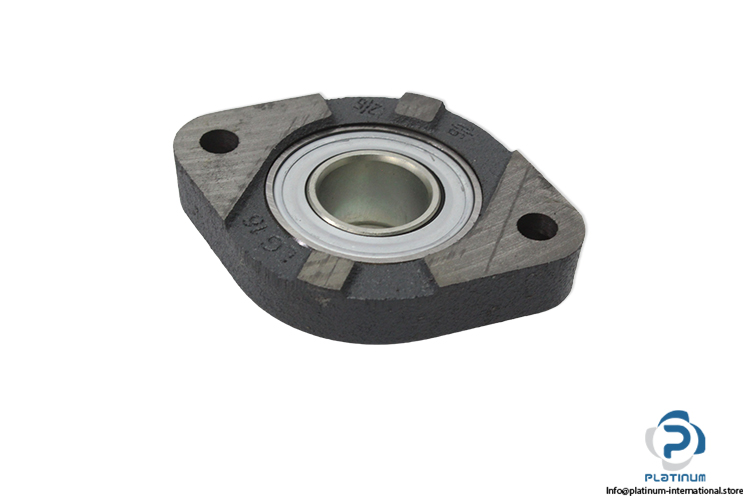

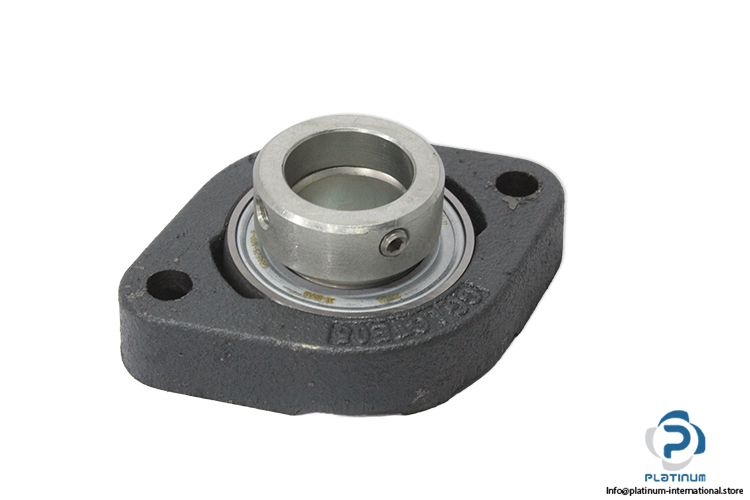

INA GLCTE25 Flanged Housing Unit
New
In stock3 unitsReady to ship
Flanged Housing Unit INA Schaeffler flanged housing unit with 25 mm bore, grey cast iron GG LCTE05 housing and GRAE25-NPP-B-OSE bearing for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Replace | GLCTE25-XL |
| Housing | GG LCTE05 |
| Bearing designation | GRAE25-NPP-B-OSE |

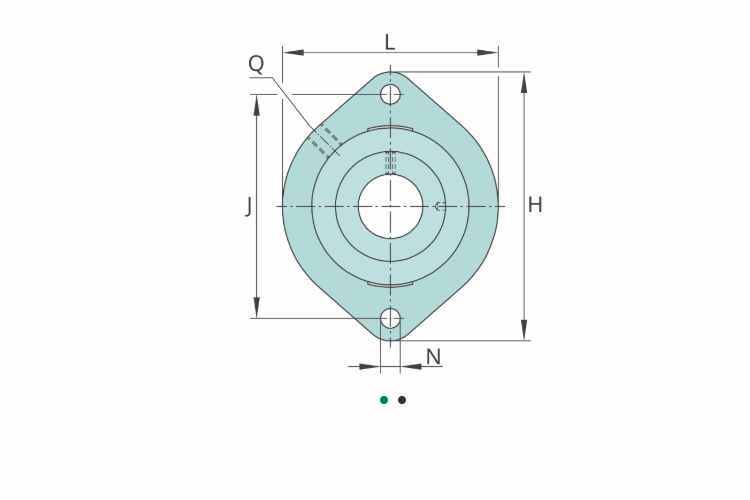

| Bore diameter, d | 25 mm |
| Flange width, L | 71 mm |
| Height flange, H | 97 mm |
| Total height unit, U | 33.4 mm |
| Basic dynamic load rating, radial, Cr | 14,000 N |
| Basic static load rating, radial, C0r | 7,800 N |
| Fatigue load limit, radial Cur | 370 N |
| Distance fixing bore, J | 76.2 mm |
| Fixing bore, N | 9 mm |
| Width across flats, W | 3 mm |
| Number of screwing holes, n | 2 |
| Material GG | Grey cast iron |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101222 |
| Weight | 0,50 |
