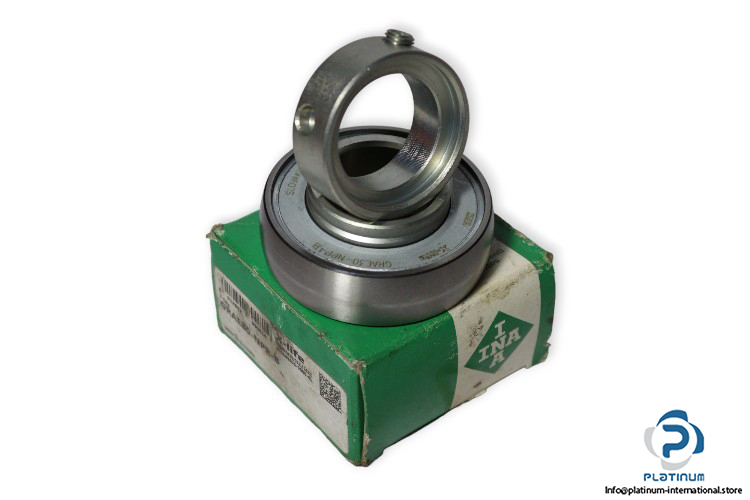

INA GRAE30-NPP-B Insert Ball Bearing

Manufacturer: INA
Type: Insert Ball Bearing
Model: GRAE30 NPP-B
Replaces: GRAE30-XL-NPP-B

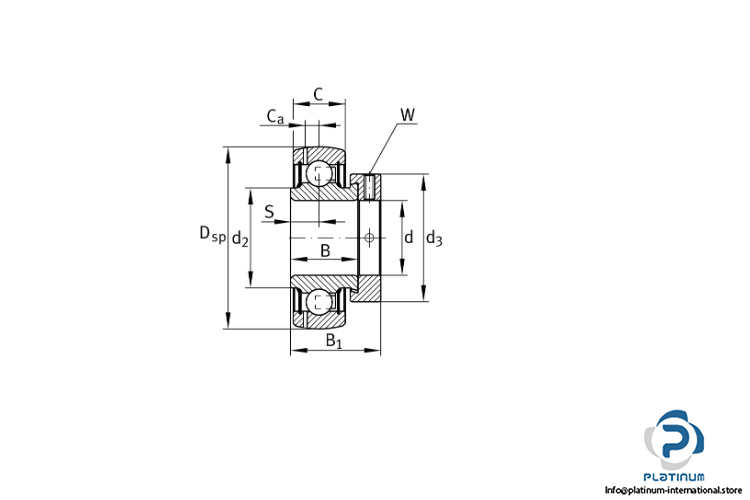

Dimensions
shaft diameter d: 30 mm
Outer diameter D_sp: 62 mm
Width B: 23.8 mm
Width, outer ring C: 18 mm
Basic load ratings:
Dynamic C: 19500 N
Static C₀: 11300 N
Fatigue load limit, radial: 480 N
Sealing: NPP, Lip seal on both sides
Shape of outer surface: B
