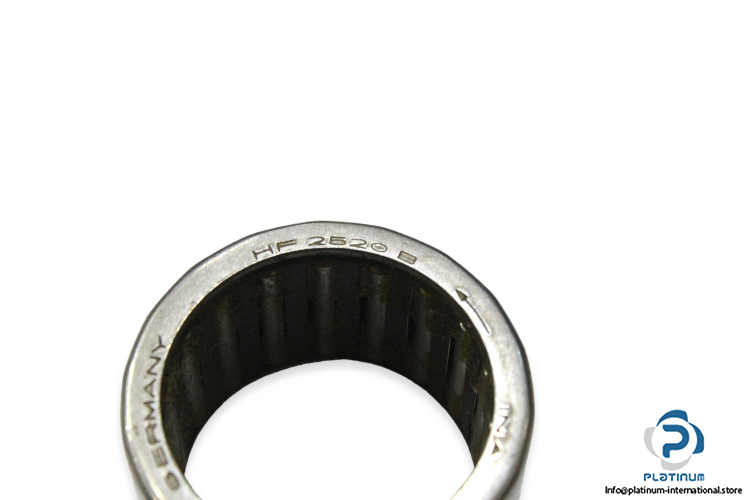

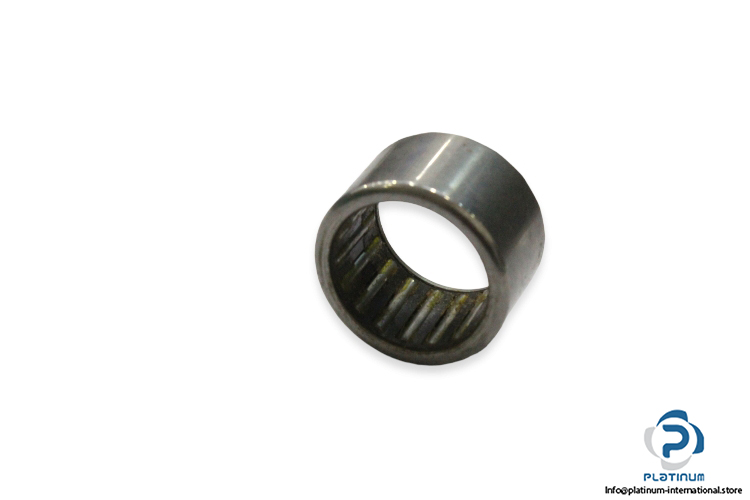

INA HF 2520 B Drawn CUP Needle Roller Clutch Bearing

Manufacturer: Schaeffler INA

Type:  Drawn cup roller clutch

Model: HF2520 B

Dimensions

Diameter under rollers F_w: 25 mm

Outer diameter D: 32 mm

Width outer ring C: 20 mm

Minimum chamfer dimension r_min: 0.3 mm

Permissible torque: 66 Nm

Limiting speed for rotating shaft: 5500 rpm

Limiting speed for rotating outer ring: 5500 rpm

Lubricant: L564,Grease

Operating temperature: -10 °C…70 °C
