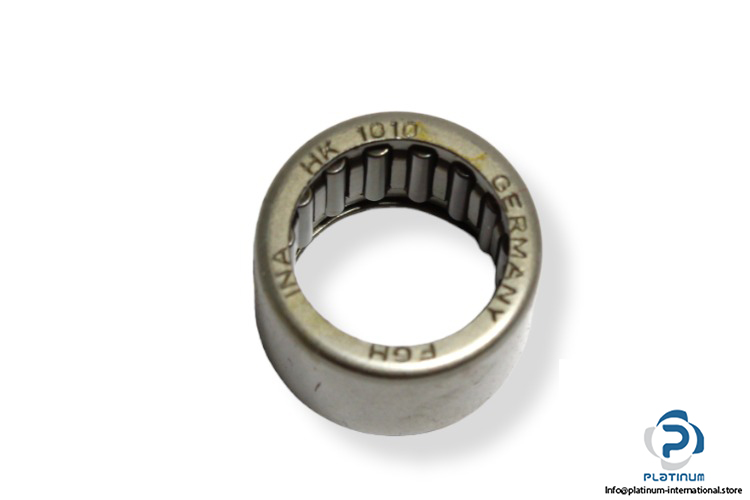

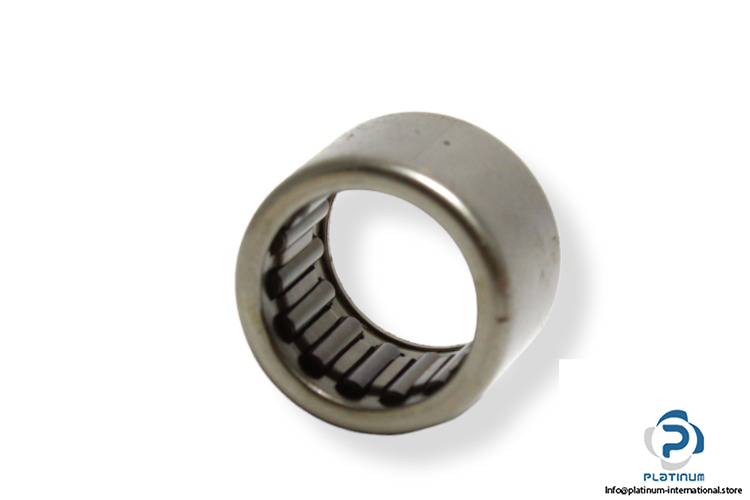

INA HK 1010 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK1010

Dimensions

Diameter under rollers F_w: 10 mm

Outer diameter D: 14 mm

Width outer ring C: 10 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.4 mm

Basic load ratings:

Dynamic C: 4400 N

Static C₀: 5100 N

Fatigue load limit P_u: 670 N

Limiting speed: 24300 rpm

Limiting speed for grease lubrication: 14600 rpm

Reference speed: 18700 rpm

Operating temperature: -30 °C…140 °C
