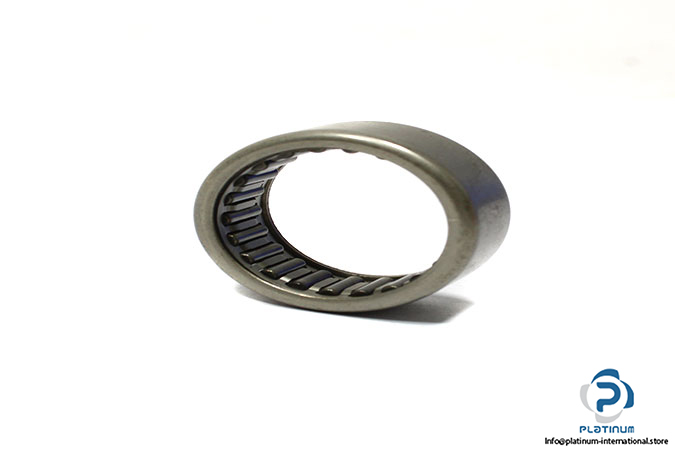

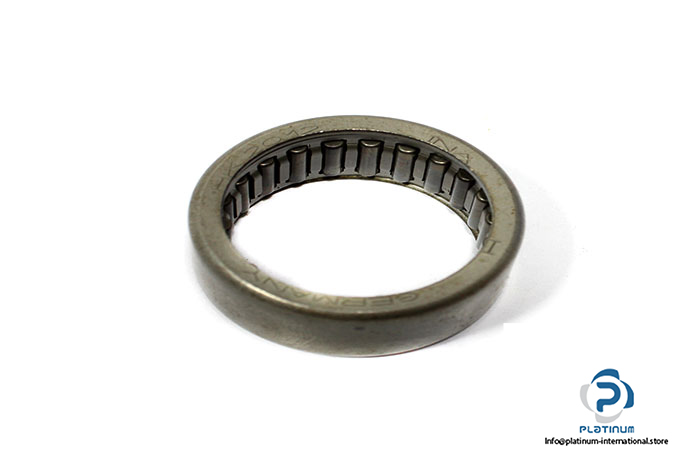

INA HK2012 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK 2012

Dimensions

Diameter under rollers F_w: 20 mm

Outer diameter D: 26 mm

Width outer ring C: 12 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.8 mm

Basic load ratings:

Dynamic C: 8600 N

Static C₀: 12100 N

Fatigue load limit P_u: 1480 N

Limiting speed: 12700 rpm

Limiting speed for grease lubrication: 7600 rpm

Reference speed: 9700 rpm

Operating temperature: -30 °C…140 °C
