INA K 20X24X13-A-1-3 Needle Roller Bearing
New
In stock2 unitsReady to ship
Needle Roller and Cage Assembly
Single-row needle roller and cage assembly, 20 mm bore, 24 mm outer diameter, 13 mm width, load rating up to 14300 N, and limiting speed of 21,000 rpm. Suitable for compact and high-speed mechanical systems.assemblybearingCageComponentsHighInaIndustrialMechanicalNeedlePrecisionRollerRowSchaefflerSingleSpeed
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

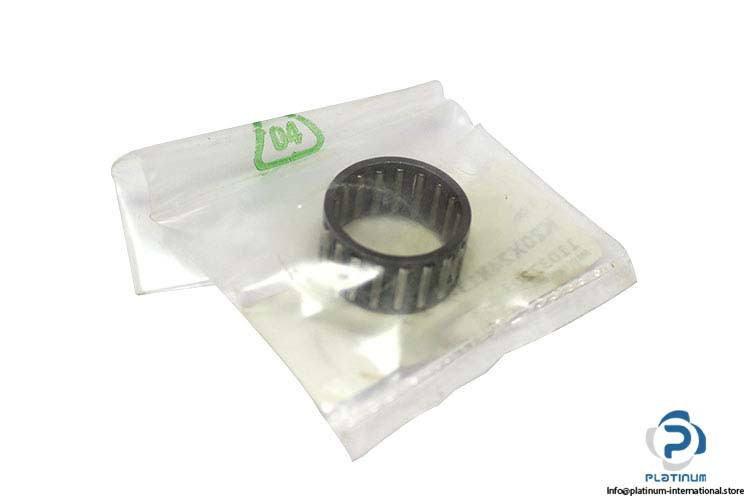

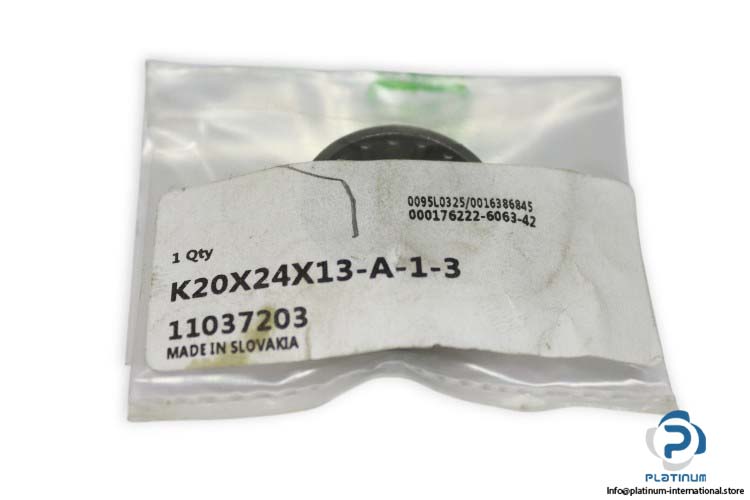

INA / Schaeffler K20X24X13-A-1-3 Needle Roller and Cage Assembly
The INA / Schaeffler K20X24X13-A-1-3 is a precision-engineered single-row needle roller and cage assembly designed for high-speed and load-bearing applications in compact mechanical systems.
Manufacturer: INA / Schaeffler
Type: Single Row Needle Roller and Cage Assembly
Model: K20X24X13-A-1-3
Code: 11037203
| Bore Diameter of Needle Roller Complement | 20 mm |
| Outside Diameter | 24 mm |
| Outside Diameter of Needle Roller Complement | 24 mm |
| Width | 13 mm |
| Basic Dynamic Load Rating (C) | 9800 N |
| Basic Static Load Rating (C0) | 14300 N |
| Limiting Speed | 21,000 rpm |
