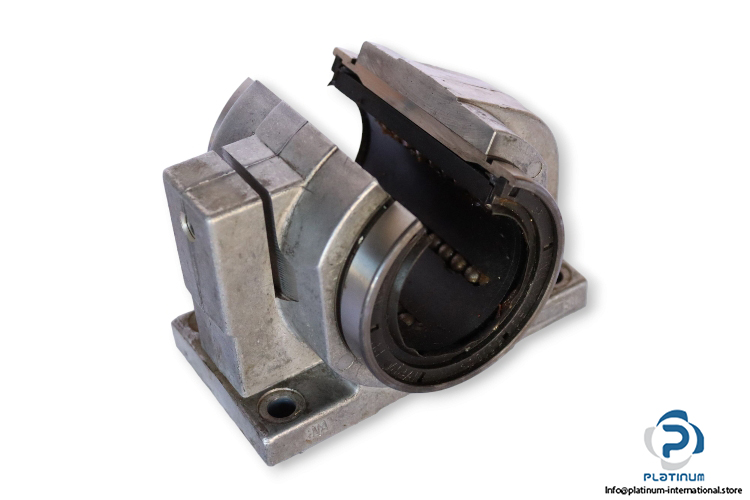

INA KGBAO50-PP-AS Linear Bearing Unit

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KGBAO 50-PP-AS

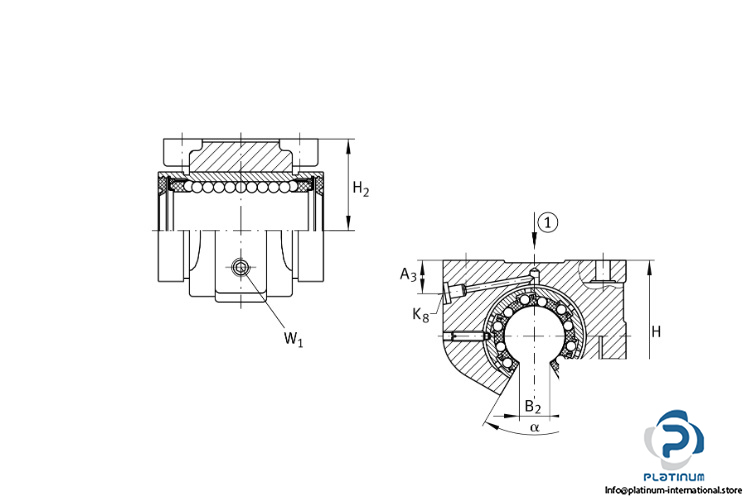

Shaft diameter F_w: 50 mm
Housing width B: 130 mm
Housing Height H: 93 mm
Housing Length L: 108 mm
Base to Center Height L5: 72 mm
JB: 40 mm
Design type: Open Type
Rows of Balls: 5
Basic Load Ratings:
Dynamic C: 8900 N
Static C0: 6600 N
Angle α: 54 °
Sealing: PP, Lip Seal on Both Sides of Bearing
