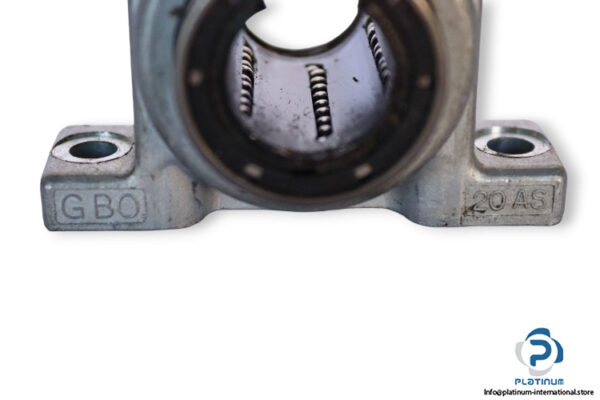

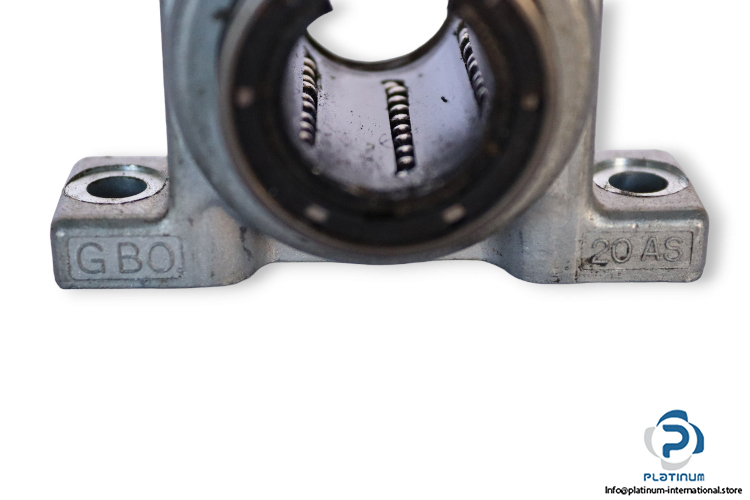

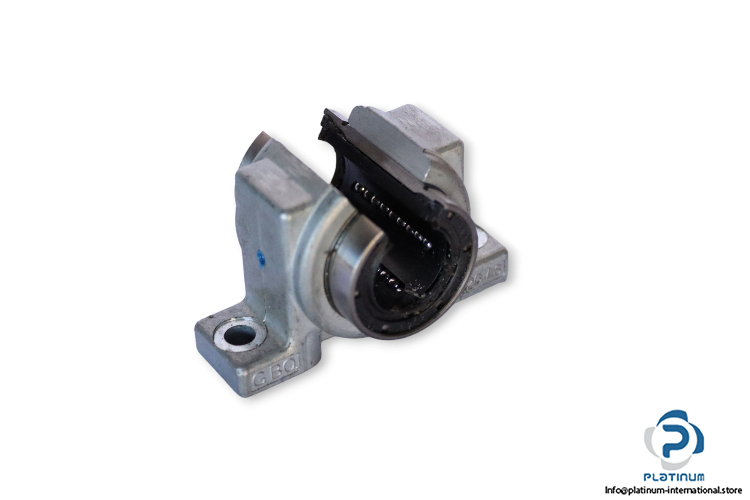

INA KGBO20-PP-AS Linear Bearing Unit

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KGBO 20-PP-AS

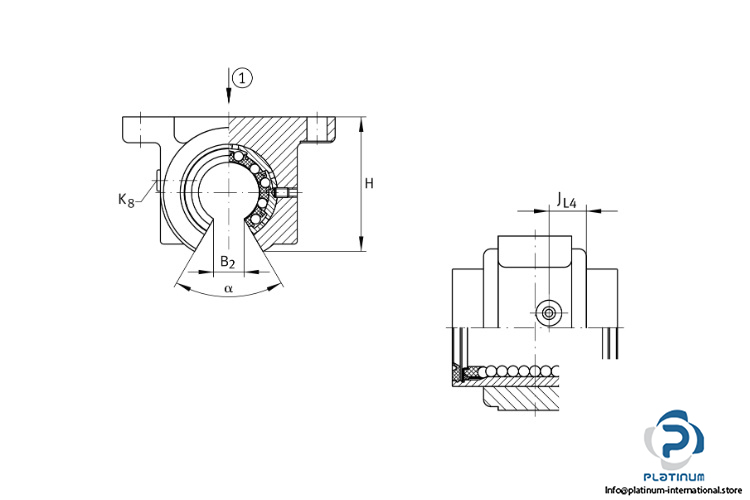

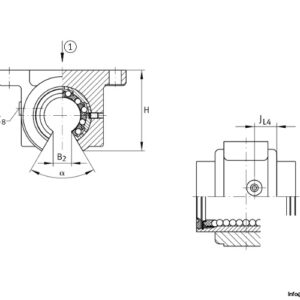

Shaft diameter F_w: 20 mm
Housing width B: 70 mm
Housing Height H: 45 mm
Housing Length L: 45 mm
Base to Center Height L5: 28 mm
JB: 58 mm
Design type: Open Type
Rows of Balls: 5
Basic Load Ratings:
Dynamic C: 1600 N
Static C0: 1280 N
Angle α: 60 °
Sealing: PP, Lip Seal on Both Sides of Bearing
