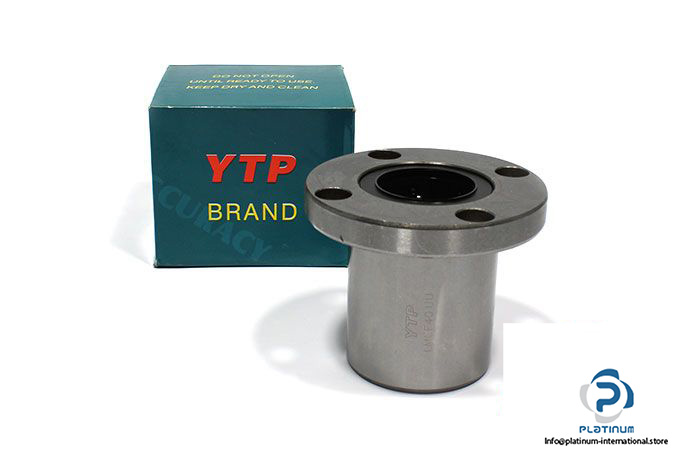

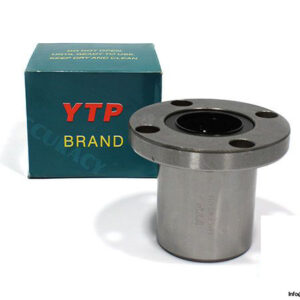

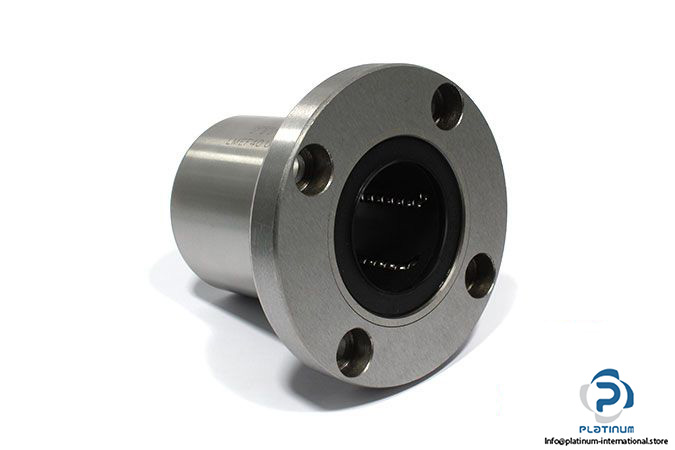

Name: YTP LMEF 40 UU FLANGE LINEAR BALL BUSHING
SKU: 994052
Availability: LimitedAvailability

Manufacturer: YTP

Type: Linear Bushing

Model: LMEF40UU

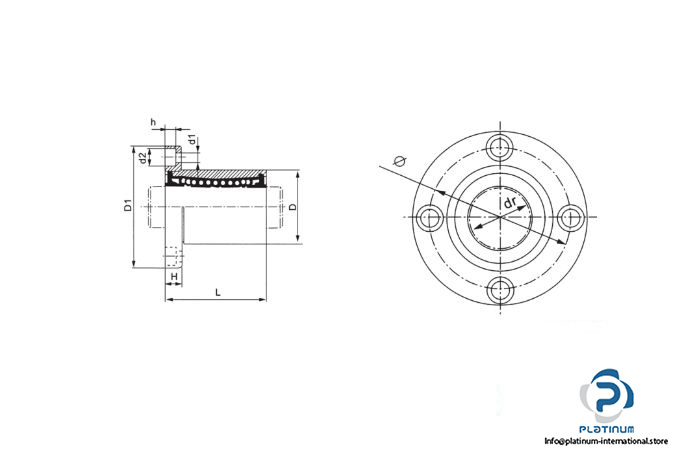

Dimensions:

Inner diameter dr: 40 mm

Outer diameter D: 62 mm

Length L: 80 mm

Flange diameter D₁: 98 mm

Design type: Flange, Closed

Rows of Balls: 6

Dynamic load rating C: 220 kgf

Static load rating C₀: 410 kgf

Seals: UU, With two end seals

Specification	Value
Weight	1,12 kg
Condition	New
Shelf No.	221008

Price	On Request
Stock	Available on request
Category	Shaft Guiding & Linear Ball Bushings
Condition	New
SKU	994052

Weight	1,12 kg
Condition	New
Shelf No.	221008

YTP Lmef 40 UU Flange Linear Ball Bushing
