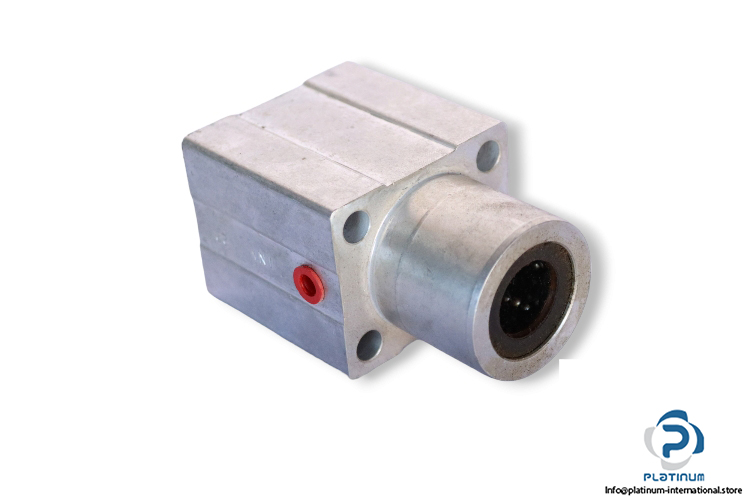

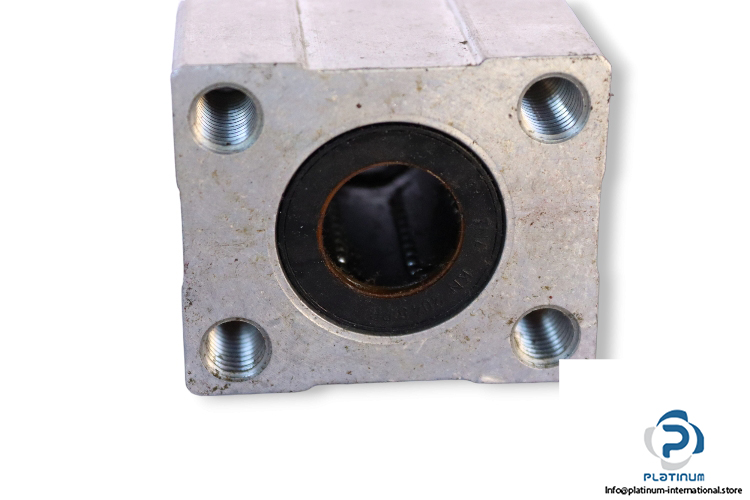

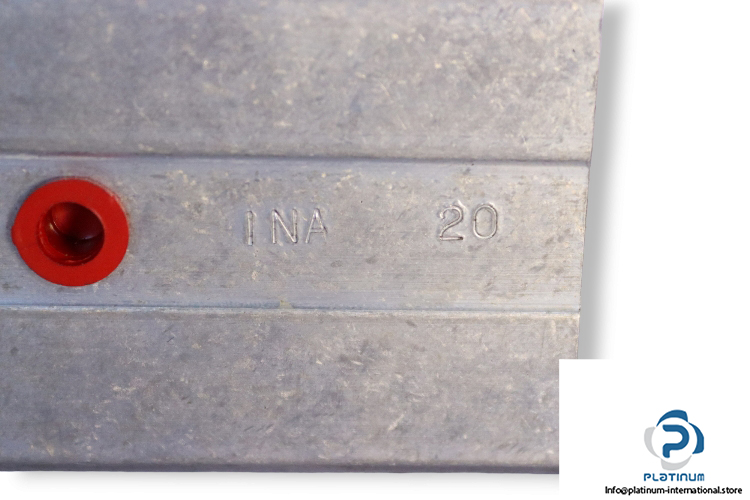

INA KTFN20 Linear Bearing Unit

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KTFN 20

Design type: Closed Type

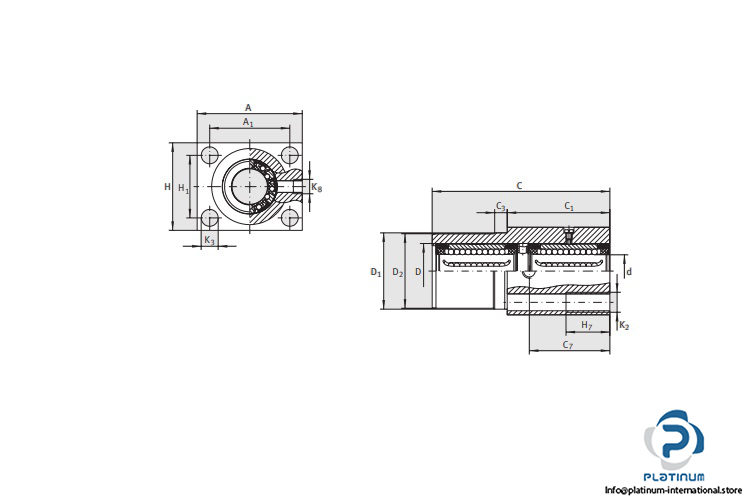

Shaft diameter F_w: 20 mm
Outside diameter D: 40 mm
Width C: 96 mm
Height H: 50 mm
A: 60 mm
H1: 35 mm
H7: 22 mm
Ball Rows: 6
Basic load ratings:
Dynamic C: 2850 N
Static C0: 2480 N
