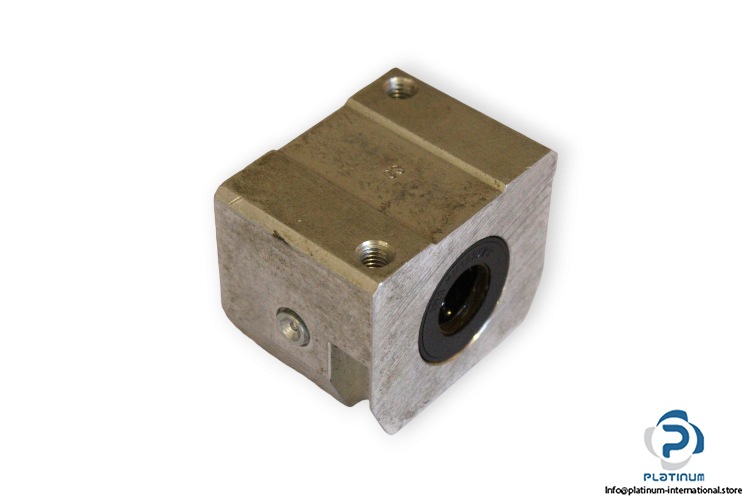

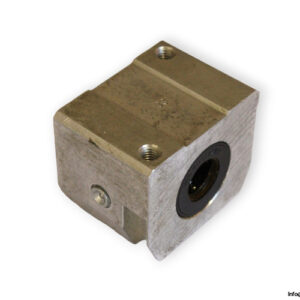

INA KGN 12 B PP AS Linear Ball Bearing AND Housing Unit

Manufacturer: Schaeffler INA
Type:  Linear ball bearing and housing unit
Model: KGN12-B-PP-AS

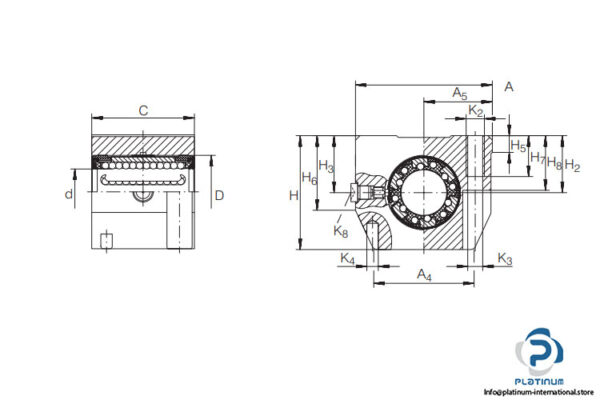

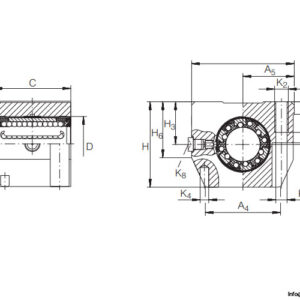

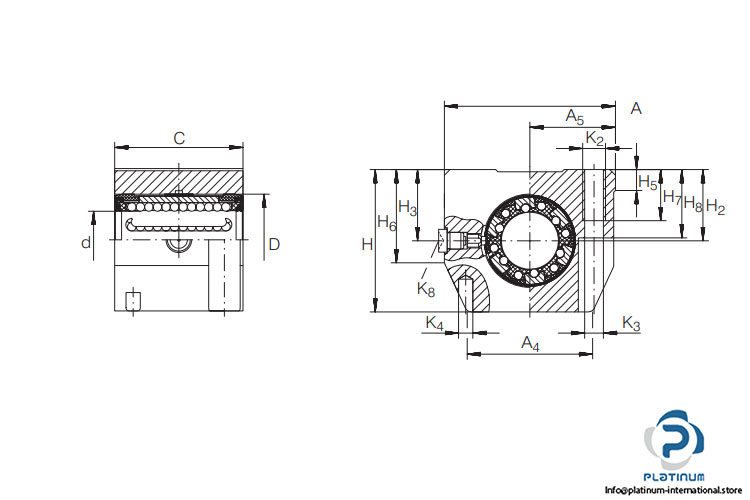

Dimensions:
Shaft diameter d: 12 mm
Height H: 35 mm
length C: 32 mm
Width A: 43 mm
Mounting dimension A₄: 34 mm
Design type: Closed type
load capacity dyn. C_max: 780 N
load capacity stat. C_{0 max}: 560 N
Seals: PP, Sealed
