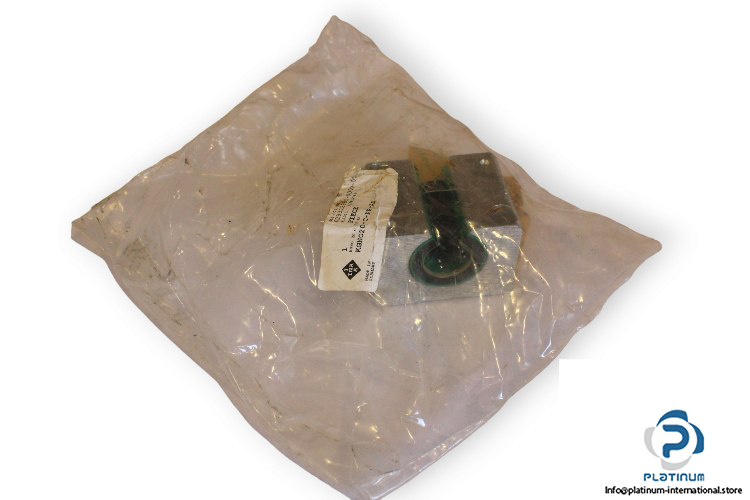

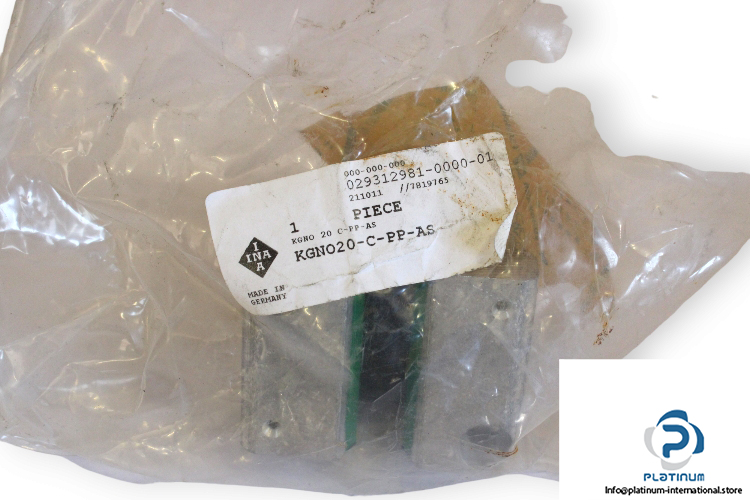

INA KGNO20-C-PP-AS Linear Ball Bearing AND Housing Unit

Manufacturer: Schaeffler INA
Type:  Linear ball bearing and housing unit
Model: KGNO 20 C PP AS

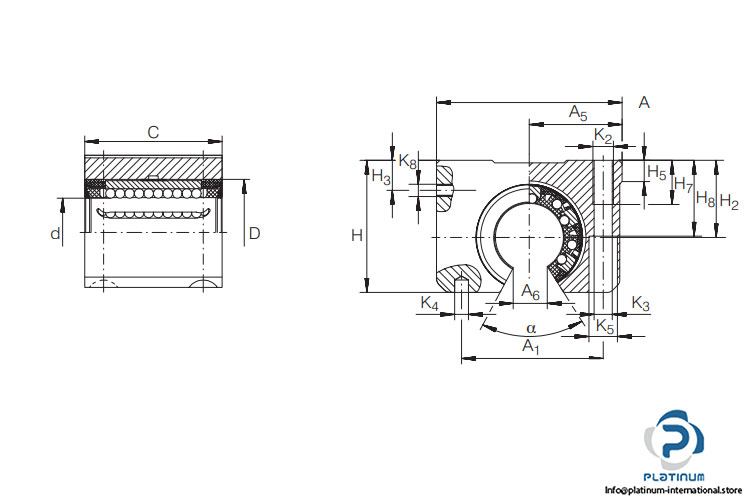

Dimensions:
Shaft diameter d: 20 mm
Height H: 42 mm
length C: 45 mm
Width A: 60 mm
Mounting dimension A₁: 45 mm
Design type: Open type
load capacity dyn. C_max: 1740 N
load capacity stat. C_{0 max}: 1240 N
Seals: PP, Sealed
