INA KR40-PP-A-NMT Stud Type Track Roller
New
In stock7 unitsReady to ship
Stud Type Track Roller
INA KR40PPANMT track roller with 40 mm outside diameter, M18x1.5 thread, and 10,900 N dynamic load rating. Durable and precise design for industrial applications requiring smooth motion and high load capacity.bearingCamComponentDutyFollowerHeavyInaIndustrialKR40PPANMTMechanicalMotionRollerStudSystemtrackType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KR40PPANMT Stud Type Track Roller

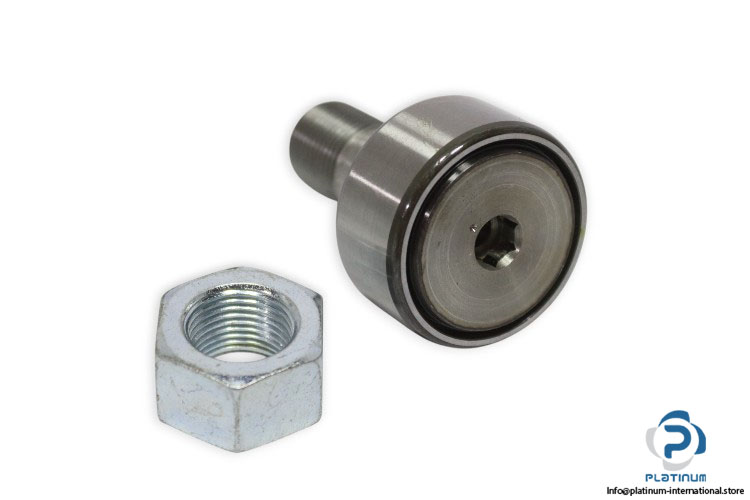

The INA KR40PPANMT is a precision-engineered stud type track roller designed for smooth and reliable motion under heavy radial loads. It provides high performance and durability for industrial and mechanical applications.
Manufacturer: INA
Type: Stud Type Track Roller
Model: KR40PPANMT

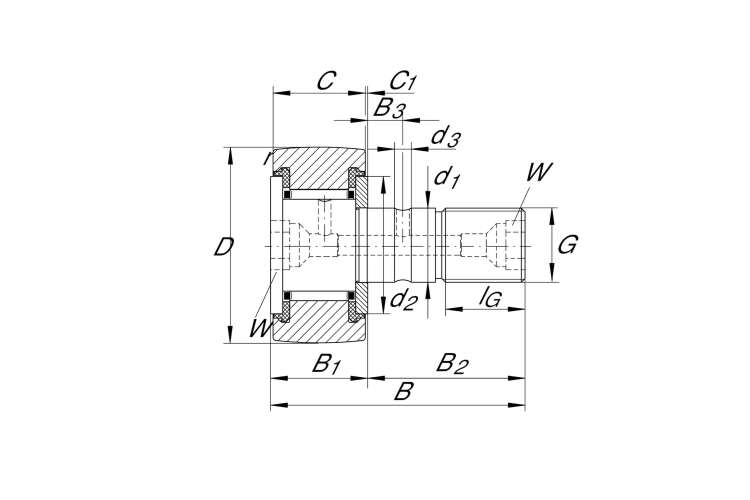

| Outside Diameter (D) | 40 mm |
| Fit Diameter of Roller Stud (d1) | 18 mm |
| Width of the Roller Stud (B) | 58 mm |
| Roller Width (B1) | 21.6 mm |
| Thread (G) | M18 x 1.5 |
| Thread Length | 19 mm |
| Dynamic Load Rating (Cr w) | 10,900 N |
| Static Load Rating (C0r w) | 16,000 N |
| Fatigue Load Limit (Cur w) | 2,130 N |
| Speed on Permanent Grease Lubrication | 2,900 rpm |
| Sealing | PP, Three-stage sealing by plastic axial plain washer on both sides |
