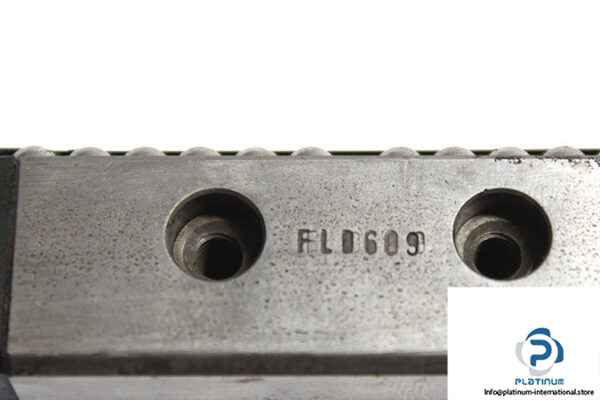

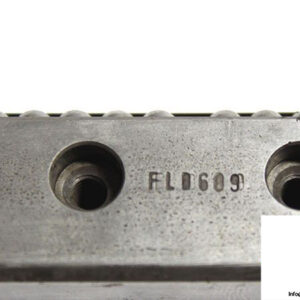

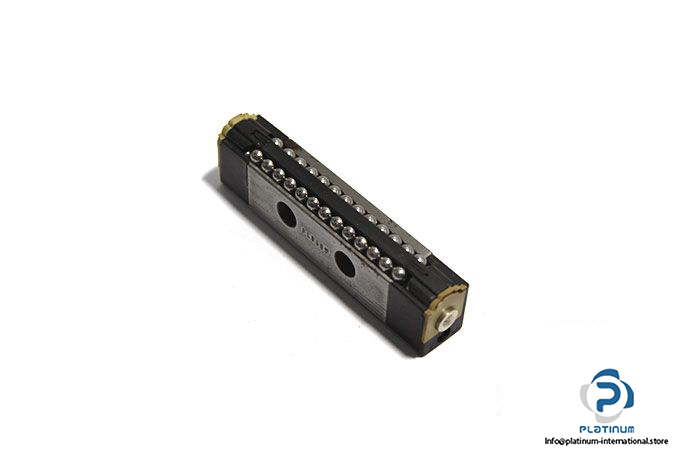

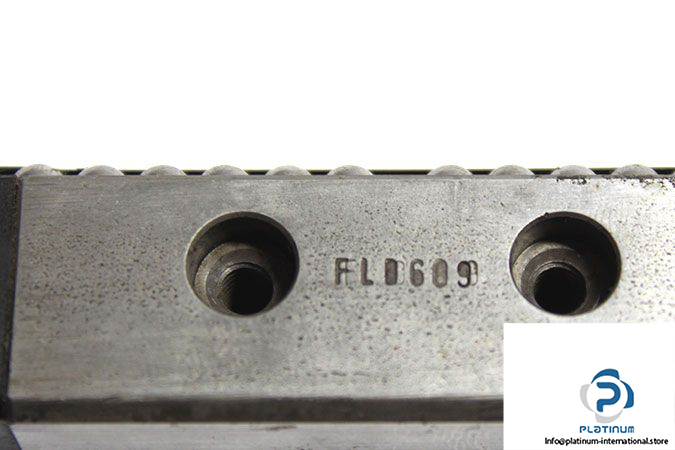

INA KUVS13-B Linear Recirculating Ball Bearing

Manufacturer: SCHAEFFLER INA

Type: Linear Recirculating Ball Bearing

Series: KUVS

Model: KUVS13-B

Size: 13

Carriage Type: linear recirculating ball bearing units for guideway with raceways on both sides

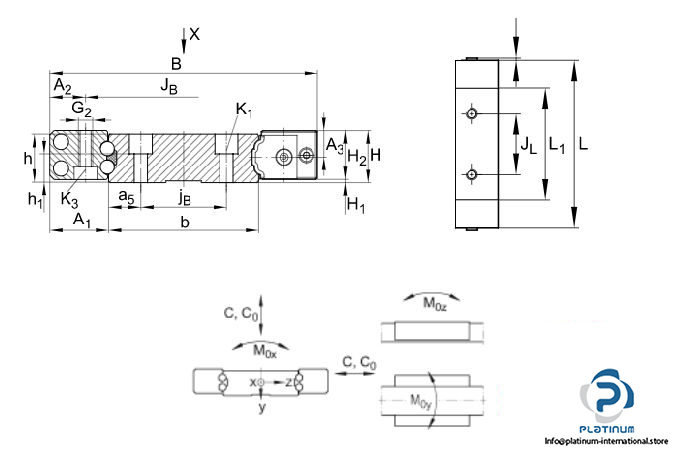

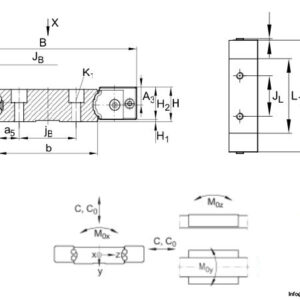

Dimensions

Length ( L ): 71 mm

Width ( A₁ ): 16.5 mm

Height ( H₂ ): 13.5 mm

Basic Dynamic load rating C: 13500 N

Basic Static load rating C₀: 26000 N

Static Moment Rating About:

X axis M_0x: 648 Nm

Y axis M_0Y: 211 Nm

Z axis M_0Z: 211 Nm

Weight: 0.08 kg
