INA KWE30 V1 Recirculating Ball Bearing Carriage
New
In stock1 unitReady to ship
Recirculating Ball Bearing Carriage
INA KWE30 V1 Recirculating Ball Bearing Carriage features a 30 mm size with 22.5 kN dynamic load capacity. Ideal for applications requiring high precision and stability with preload V1 and excellent moment ratings.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

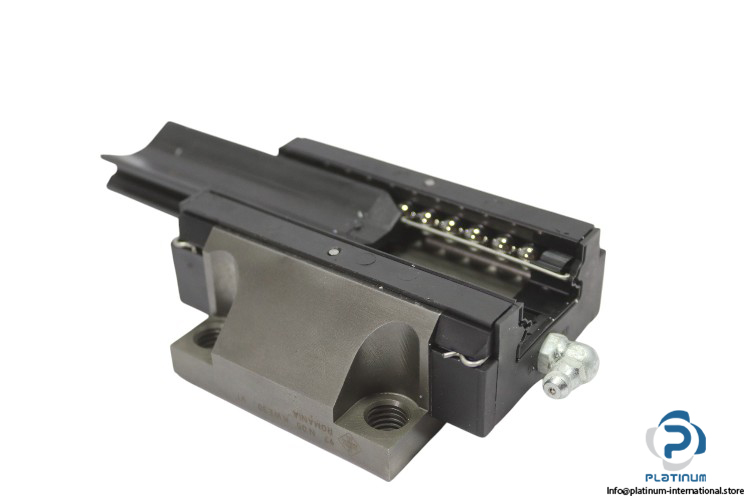

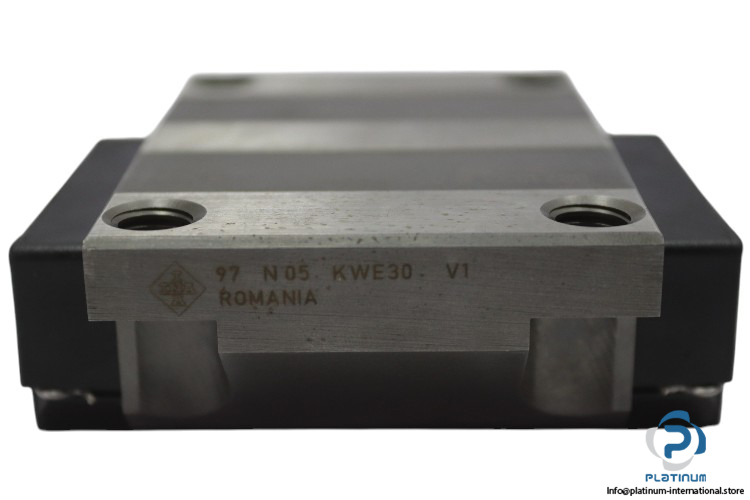

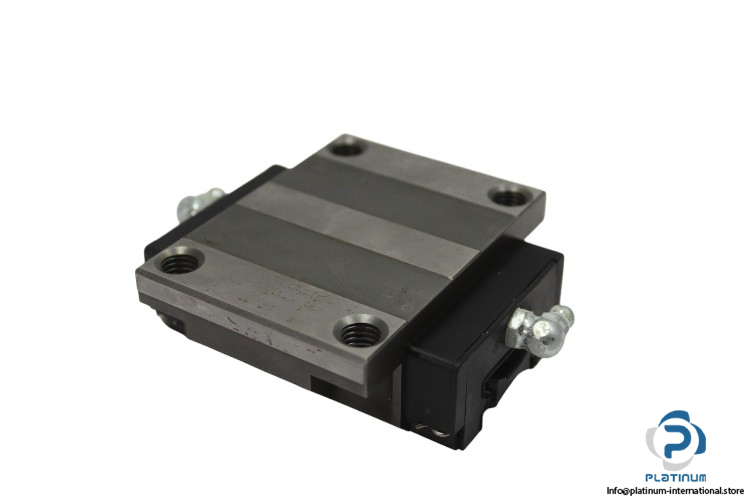

INA KWE30 V1 Recirculating Ball Bearing Carriage
The INA KWE30 V1 Recirculating Ball Bearing Carriage is designed for high-performance applications, offering precise and reliable linear motion with a preload of V1. Ideal for demanding environments requiring high load capacity and stability.
Manufacturer: INA
Model: KWE30 V1
Type: Recirculating Ball Bearing Carriage

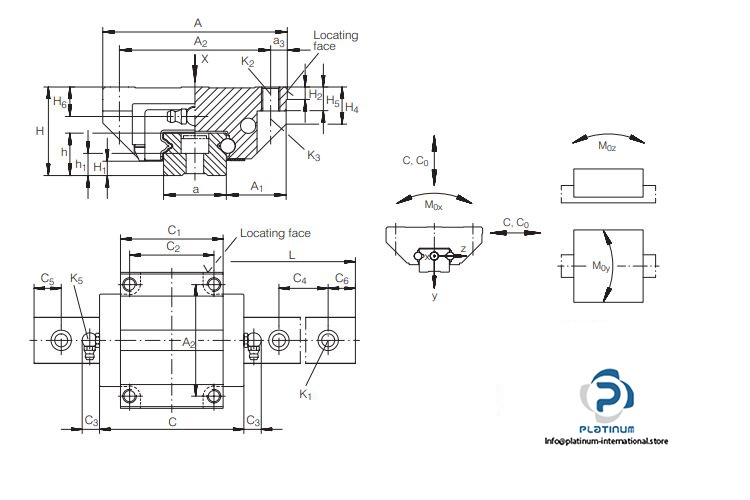

Static Moment Rating About:
| Size | 30 mm |
| Height System H | 42 mm |
| Width Carriage A | 90 mm |
| Block Height | 35 mm |
| Overall Length Carriage C | 93 mm |
| Dynamic Load Rating (C) | 22.5 kN |
| Static Load Rating (C0) | 29.7 kN |
| X axis M0x | 437 Nm |
| Y axis M0Y | 335 Nm |
| Z axis M0Z | 335 Nm |
| Preload | V1 |
