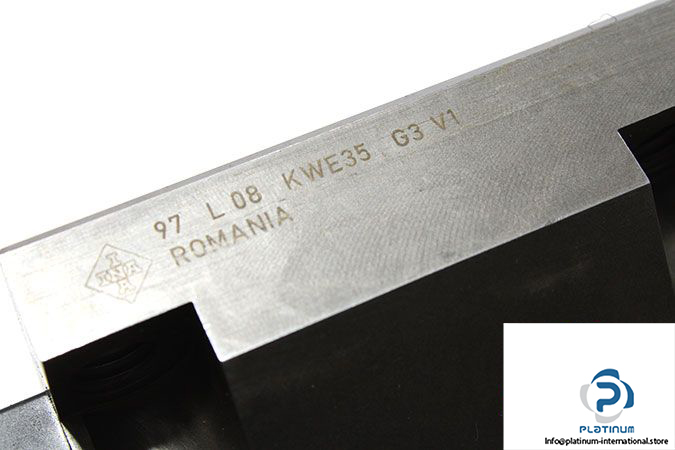

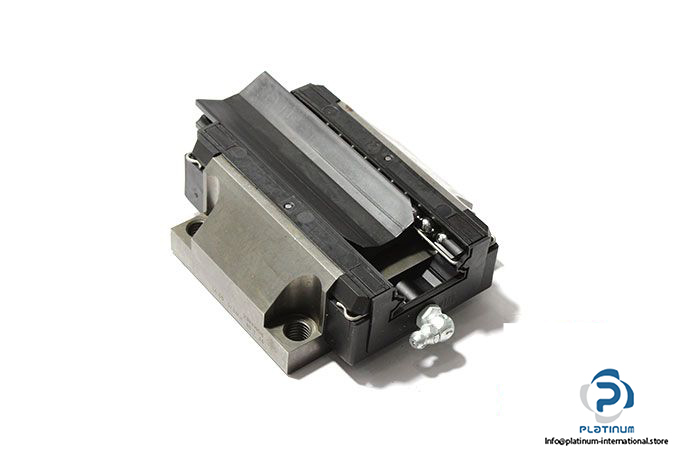

INA KWE35 G3 V1 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Tow-Row Linear Recirculating Ball Bearing Carriage

Model: KWE35-G3-V1

Size: 35 mm

Basic Load Ratings:

Dynamic C: 28 kN

Static C₀: 37 kN

Static Moment Rating About:

X axis M_0x: 658 Nm

Y axis M_0Y: 450 Nm

Z axis M_0Z: 450 Nm

Preload: V1

Accuracy Class: G3

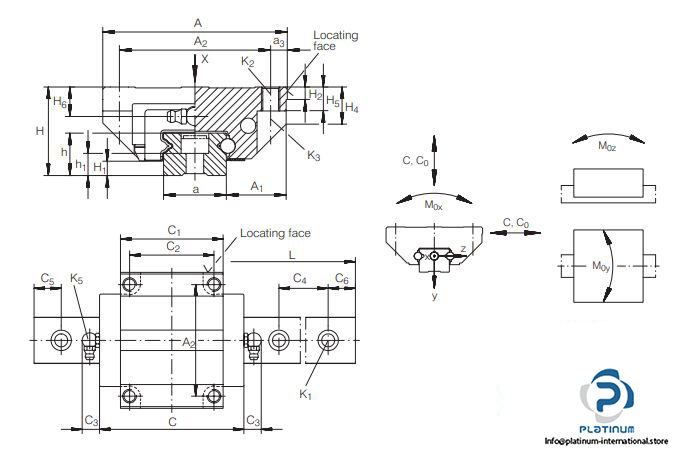

Dimensions:

Height system H: 48 mm

Width carriage A: 100 mm

Overall length carriage C: 106.4 mm
