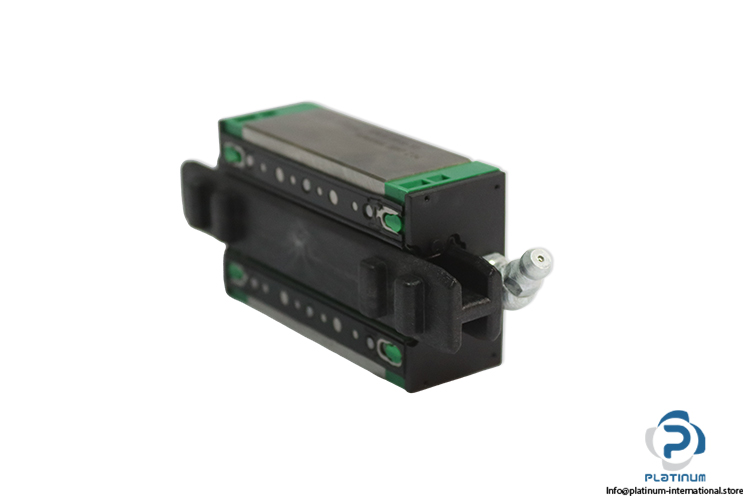

INA KWSE20-H-V1-G2 Recirculating Ball Bearing Carriage
New
In stock4 unitsReady to ship
Recirculating Ball Bearing Carriage
INA KWSE20-H-V1-G2 high-carriage recirculating ball bearing carriage with high load ratings and precision guidance for linear motion systems.20BallbearingCarriageGuideHighInaIndustrialKWSE20-H-V1-G2LinearMotionPrecisionRecirculatingSchaefflerSize
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWSE20-H-V1-G2 Recirculating Ball Bearing Carriage
The INA KWSE20-H-V1-G2 is a high-precision recirculating ball bearing carriage designed for linear motion systems requiring high load capacity, rigidity, and accuracy. Its high-carriage design ensures stable guidance and reliable performance in demanding industrial applications.
Manufacturer: INA / Schaeffler
Type: Recirculating Ball Bearing Carriage
Model: KWSE20-H-V1-G2

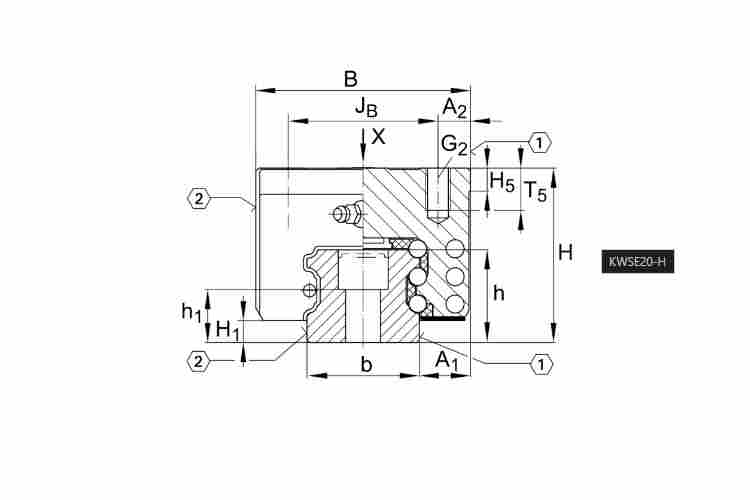

| Size | 20 |
| Carriage Design | H “ High Carriage |
| Height System (H) | 30 mm |
| Width Carriage (B) | 44 mm |

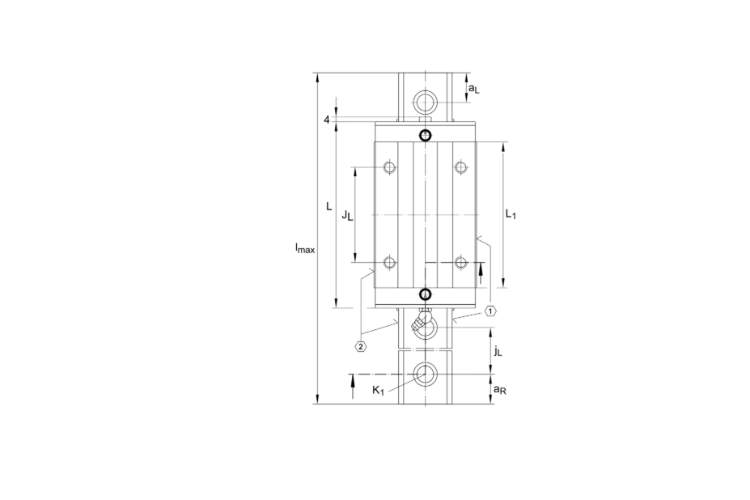

| Overall Length Carriage (L) | 71.4 mm |
| Width Rail (b) | 20 mm |
| A2 | 6 mm |
| G2 | M5 |
| Free Space, System Dimension (H1) | 4.6 mm |
| Dynamic Load Rating, Load Direction I (Compressive) C | 22,000 N |
| Static Load Rating, Load Direction I (Compressive) C0 | 52,000 N |
| Dynamic Load Rating, Load Direction II (Tensile) C | 21,300 N |
| Static Load Rating, Load Direction II (Tensile) C0 | 35,300 N |
| Dynamic Load Rating, Load Direction III (Lateral) C | 21,000 N |
| Static Load Rating, Load Direction III (Lateral) | 35,000 N |
| Static Moment Rating About X Axis (M0X) | 530 Nm |
| Static Moment Rating About Y Axis (M0Y) | 350 Nm |
| Static Moment Rating About Z Axis (M0Z) | 305 Nm |
| Material Name | KWSE |
