INA KWSE25-H-V2-G3 Linear Recirculating Ball Bearing
New
Available on request
Linear Recirculating Ball Bearing
The INA KWSE25-H-V2-G3 is a high-precision linear recirculating ball bearing with a 25mm size, high load capacity, and G3 accuracy class for industrial applications.AccuracyBallbearingCapacityG3GuideGuidewayHighInaIndustrialKWSE25-H-V2-G3LinearLoadMotionPrecisionPreloadRecirculatingV2
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWSE25-H-V2-G3 Linear Recirculating Ball Bearing
The INA KWSE25-H-V2-G3 Linear Recirculating Ball Bearing is a high-performance guideway system designed for precision linear motion applications. Featuring high load capacity, preload adjustment, and G3 accuracy class, this bearing ensures smooth and reliable operation in demanding industrial environments.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing
Model: KWSE25-H-V2-G3
Size: 25

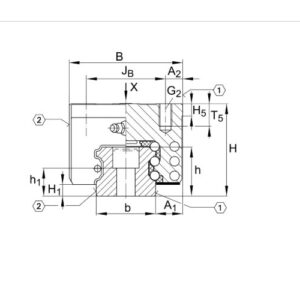

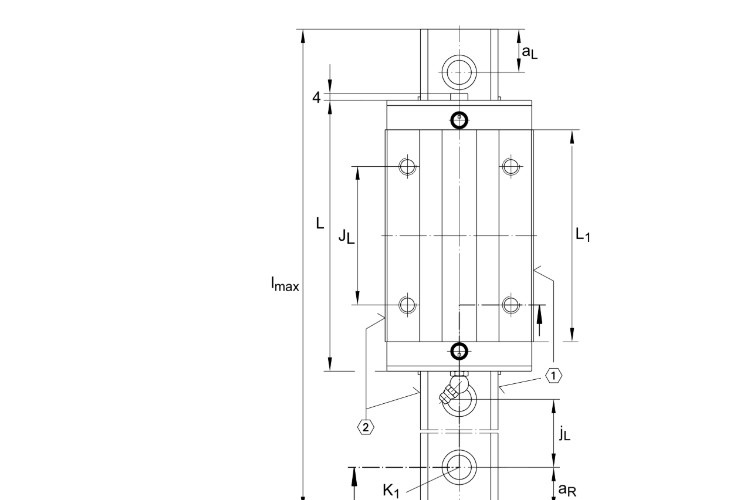

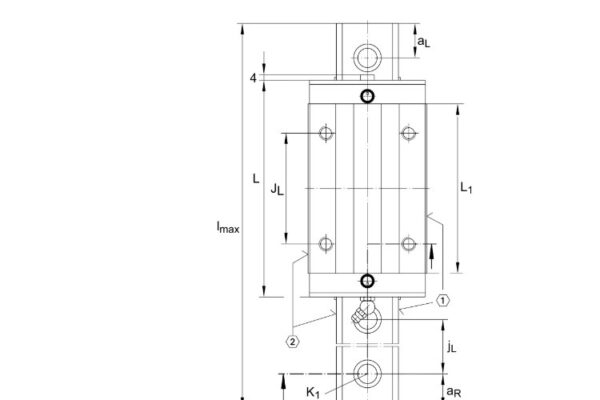

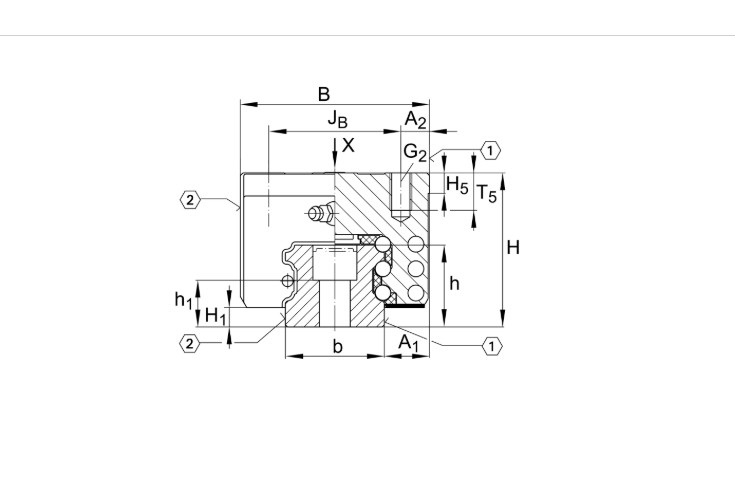

Dimensions:
Basic Load Ratings (Compressive Load):
Basic Load Ratings (Tensile Load):
Basic Load Ratings (Lateral Load):
| Length (L) | 81.8 mm |
| Width (B) | 48 mm |
| Height (H) | 40 mm |
| Block Height | 34.8 mm |
| JB | 35 mm |
| JL | 35 mm |
| Dynamic C | 28,000 N |
| Static C‚ | 67,000 N |
| Dynamic C | 26,000 N |
| Static C‚ | 45,000 N |
| Dynamic C | 28,000 N |
| Static C‚ | 47,000 N |
| Accuracy Class | G3 |
| Carriage Preload | V2 |
