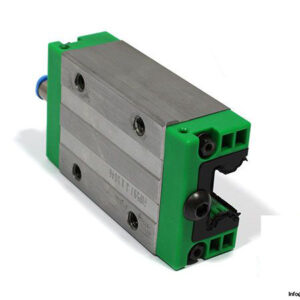

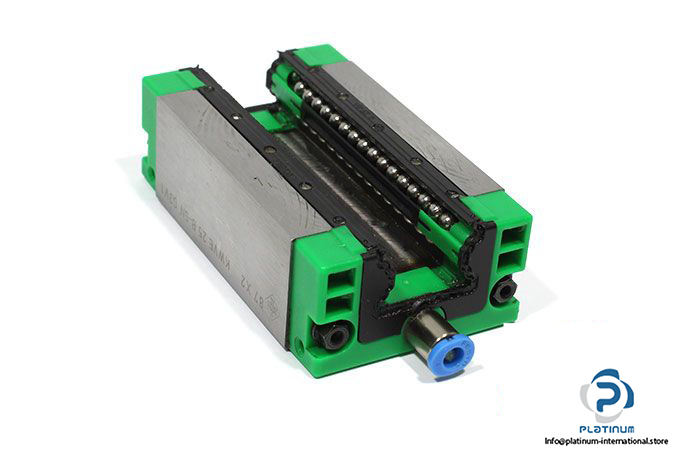

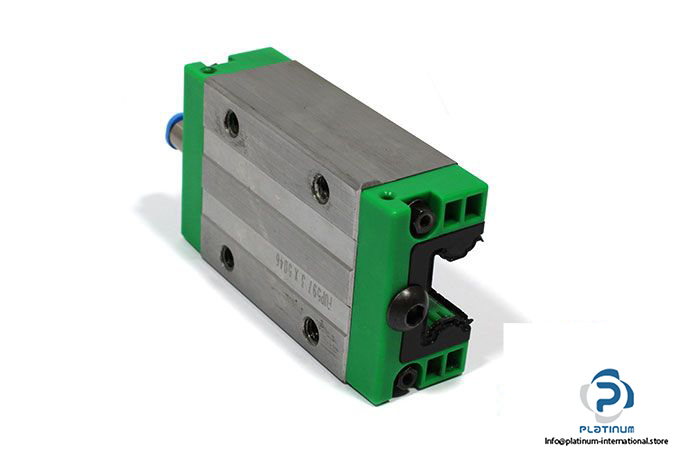

INA Kwve 25 B-SN G3 V1 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Four-row Linear recirculating Ball Bearing

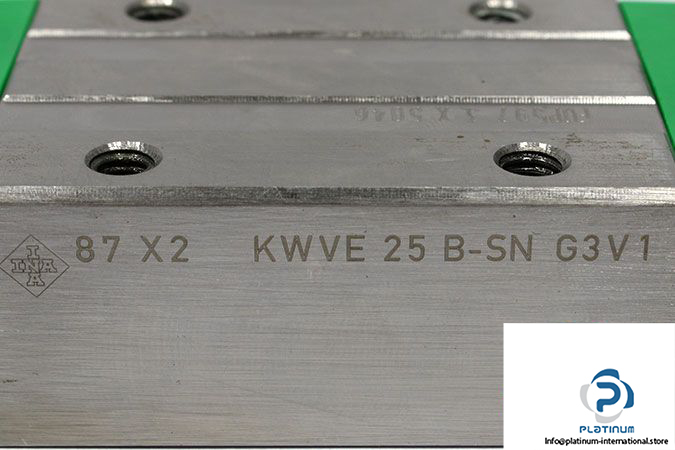

Model: KWVE25-B-SN

Size: 25

Carriage Design: Narrow, low carriage

Basic Load Ratings:

Dynamic C: 17900 N

Static C₀: 37000 N

Static Moment Rating About:

X axis M_0x: 510 Nm

Y axis M_0Y: 395 Nm

Z axis M_0Z: 395 Nm

Preload: V1

Accuracy Class: G3

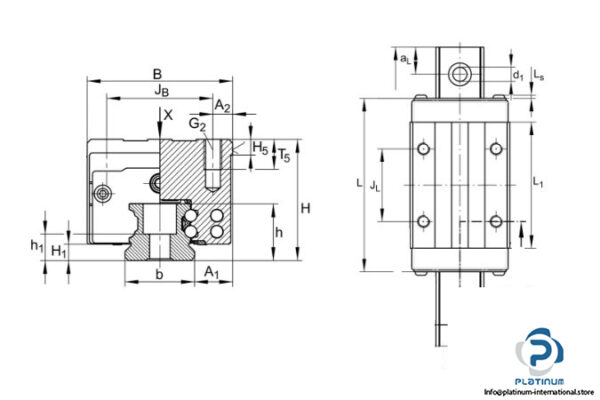

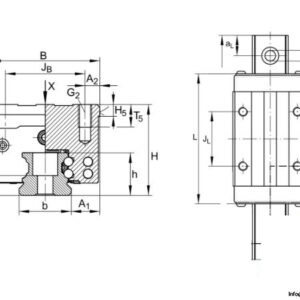

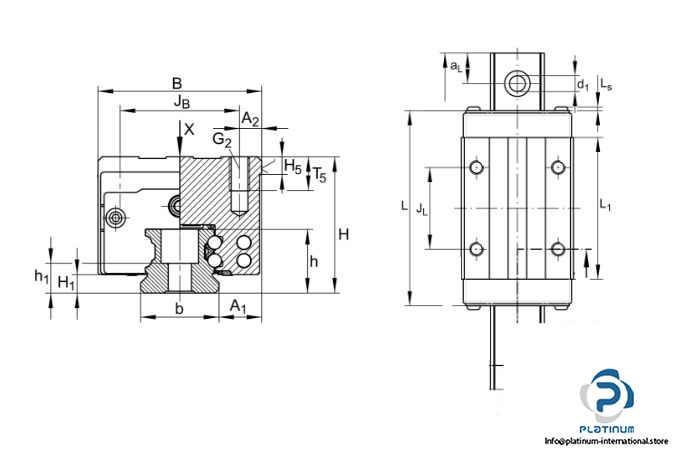

Dimensions

Total Height H: 31 mm

Width carriage B: 48 mm

Overall length carriage L: 83.3 mm

J_B: 35 mm

J_L: 35 mm

Weight: 0.45 kg
