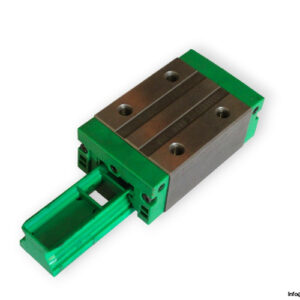

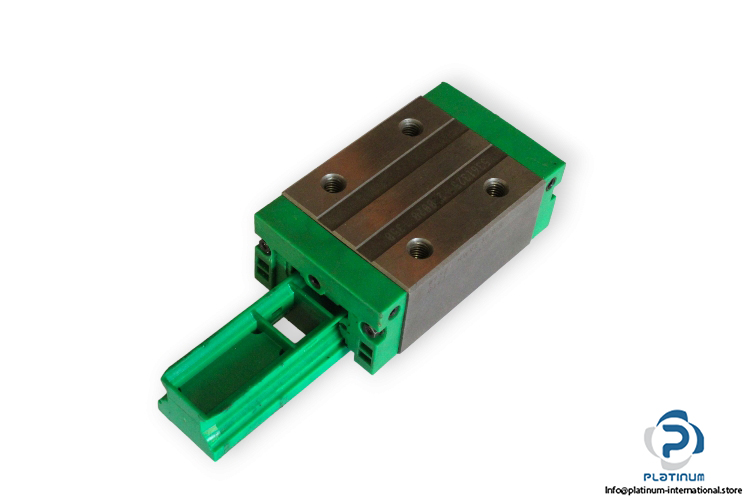

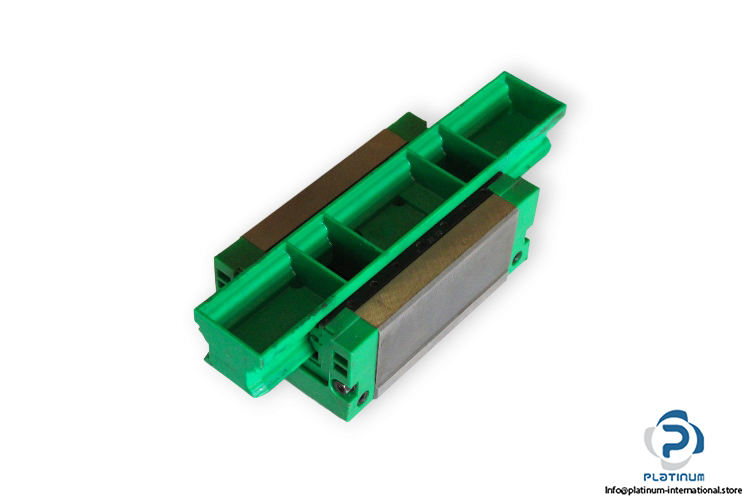

INA Kwve 30 B-S G3 V1 Linear Recirculating Ball Bearing

Manufacturer: Schaeffler INA
Type:  Four-Row Linear Recirculating Ball Bearing
Model: KWVE30 B-S-G3-V1

Size: 30

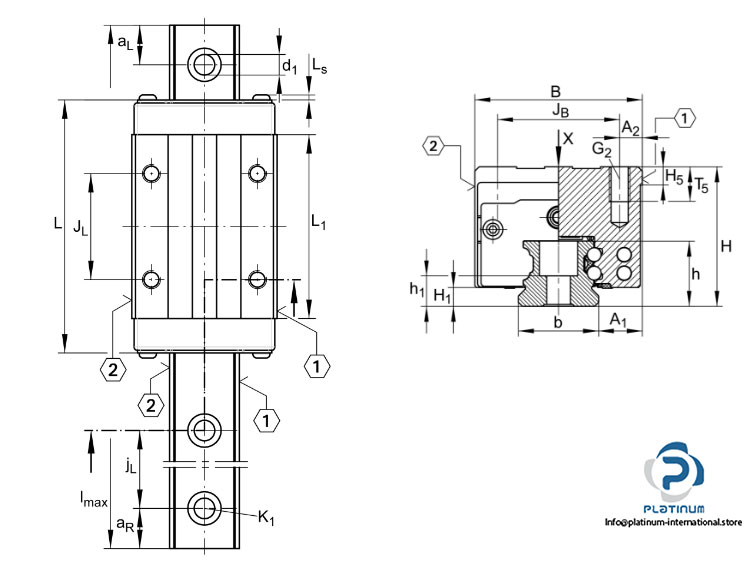

Dimensions
Length ( L ): 99 mm
Width ( B ): 60 mm
Height ( H ): 42 mm
Carriage height: 36.1 mm
J_B: 40 mm
J_L: 40 mm
Basic Load Ratings:
Dynamic C: 27500 N
Static C₀: 55000 N
Block Type: Square Type
Mounting Hole: 4 holes
Carriage design: S; Narrow Carriage
Guideway Model: TKVD30(-U)
Accuracy Class: G3
Carriage Preload: V1
