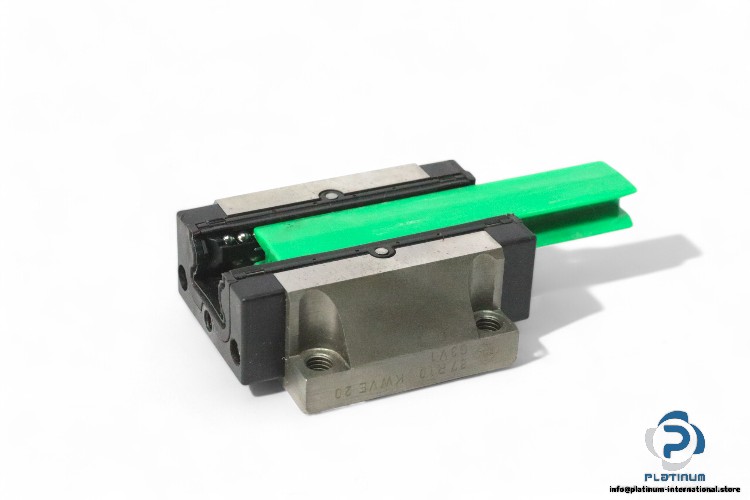

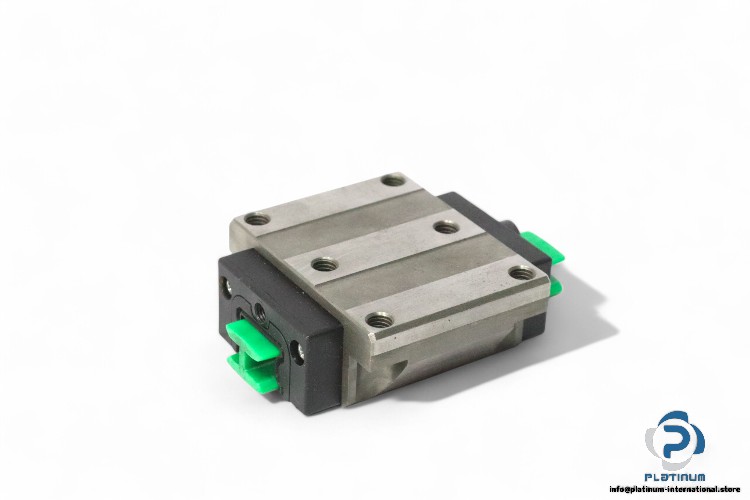

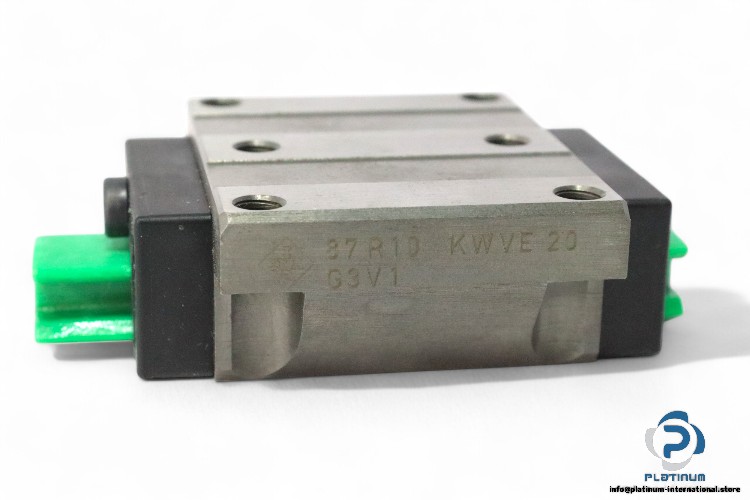

INA KWVE20 G3 V1 Linear Recirculating Ball Bearing

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE20-G3-V1

Size: 20 mm

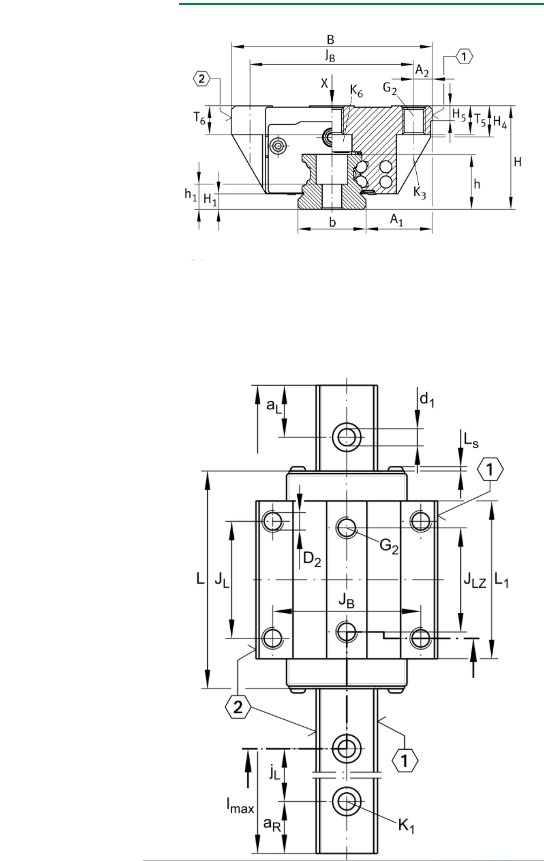

Dimensions
Height system H: 30 mm
Overall length carriage L: 71.4 mm
Width carriage B: 63 mm
Block height H-H1: 25.5 mm
JB: 53 mm
JL: 40 mm
Basic Load Ratings:
Dynamic C: 13,100 N
Static C₀: 27,000 N
Static Moment Rating About:
X axis M_0x: 332 Nm
Y axis M_0Y: 240 Nm
Z axis M_0Z: 240 Nm
Thread depth T5: 10 mm
Accuracy Class: G3
Carriage Preload: V1
