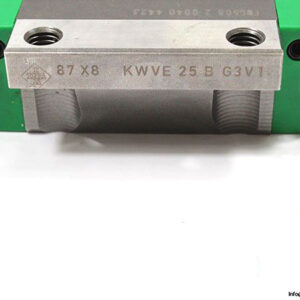

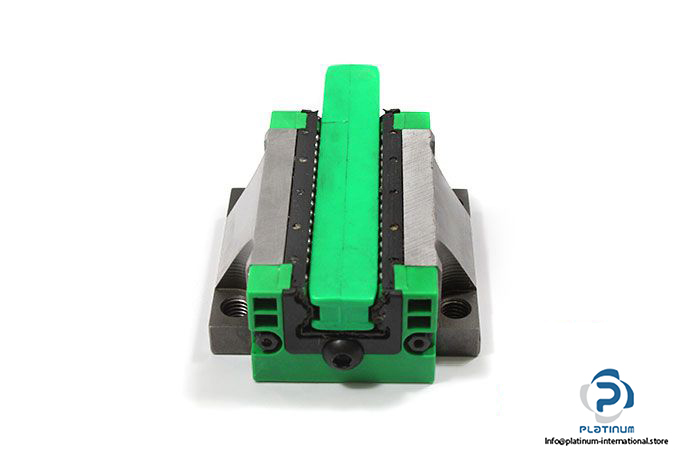

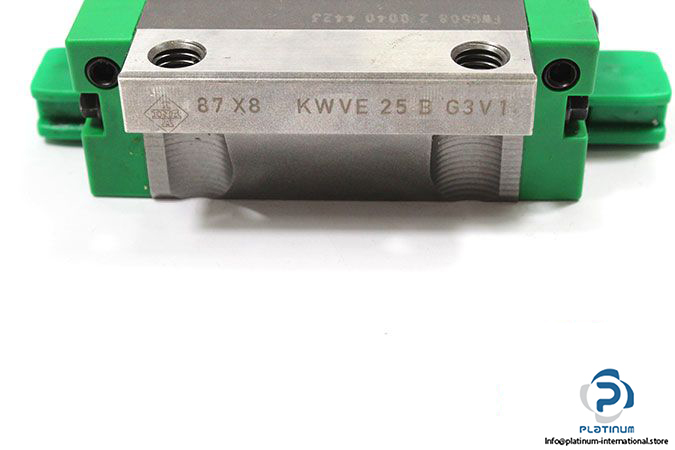

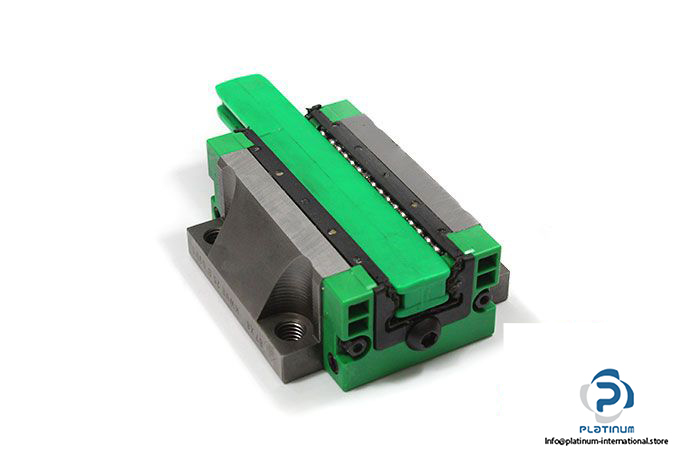

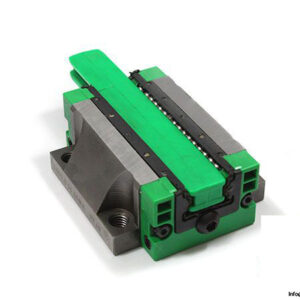

INA KWVE25-B G3 V1 Linear Recirculating Ball Bearing
New
In stock28 unitsReady to ship
105,00$
Linear Recirculating Ball Bearing
Schaeffler INA KWVE25-B G3 V1 four-row flange-type linear bearing with V1 preload and G3 accuracy for high-precision linear motion systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Schaeffler INA KWVE25-B G3 V1 Linear Recirculating Ball Bearing
The Schaeffler INA KWVE25-B G3 V1 is a four-row linear recirculating ball bearing designed for high rigidity, precision guidance, and reliable load capacity in linear motion systems.
Manufacturer: Schaeffler INA
Type: Four-Row Linear Recirculating Ball Bearing
Model: KWVE25-B G3 V1
We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing.
| Size | 25 mm |
| Design | Flange Type |
| Dynamic Load Rating (C) | 17,900 N |
| Static Load Rating (C0) | 37,000 N |
| Static Moment Rating M0x | 510 Nm |
| Static Moment Rating M0Y | 395 Nm |
| Static Moment Rating M0Z | 395 Nm |
| Preload | V1 |
| Accuracy Class | G3 |

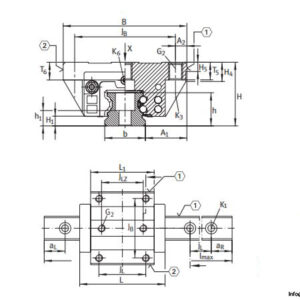

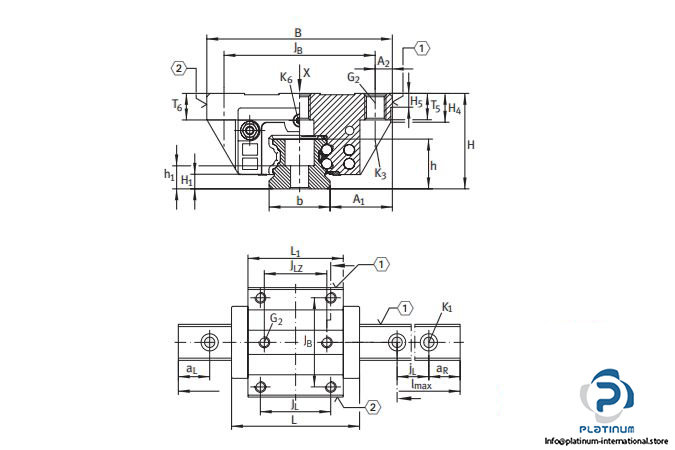

| Total Height (H) | 36 mm |
| Carriage Width (B) | 70 mm |
| Overall Carriage Length (L) | 83.3 mm |
| JL | 45 mm |
| JB | 57 mm |
