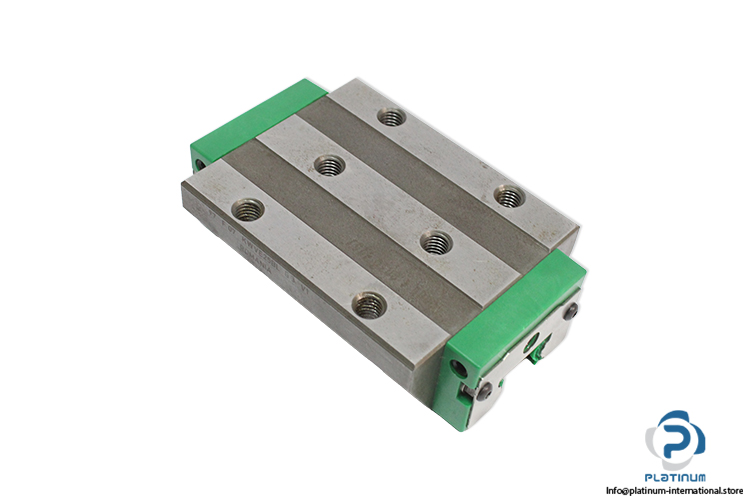

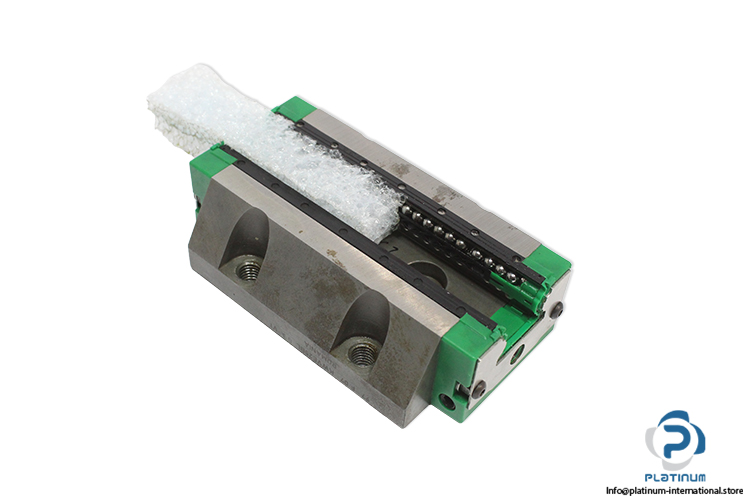

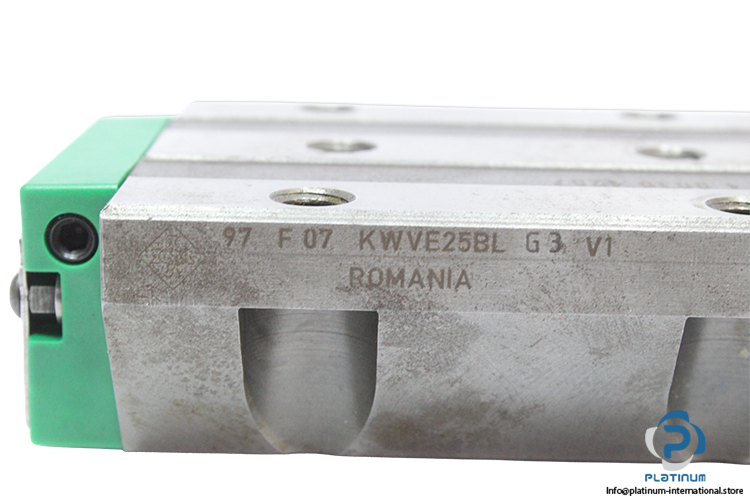

INA KWVE25BL G3V1 Linear Recirculating Ball Bearing
Used
In stock2 unitsReady to ship
Linear Recirculating Ball Bearing INA Schaeffler linear recirculating ball bearing featuring a 25 mm size, G3 accuracy class, V1 preload, and high load ratings for precision linear motion and industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Size | 25 mm |
| Version | B |
| Carriage design | L |
| Dynamic Load Ratings | C: 23,400 N |
| Static Load Ratings | C0: 54,000 N |
| Static Moment Rating About,X axis M0x | 745 Nm |
| Static Moment Rating About,Y axis M0Y | 825 Nm |
| Static Moment Rating About,Z axis M0Z | 825 Nm |
| Height system H | 36 mm |
| H1 | 5.1 mm |
| JB | 57 mm |
| JL | 45 mm |
| Width carriage B | 70 mm |
| Width Rail b | 23 mm |
| Overall length carriage L | 109.1 mm |
| Accuracy Class | G3 |
| Carriage Preload | V1 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100062 |
| Weight | 1,02 |
