INA KWVE35-B-L-V1-G3 Recirculating Ball Bearing Carriage
New
In stock1 unitReady to ship
Recirculating Ball Bearing Carriage
INA KWVE35-B-L-V1-G3 Recirculating Ball Bearing Carriage offers high dynamic and static load capacities with a dynamic load capacity of 47,500 N, and features an accuracy class of G3, making it ideal for precision linear motion applications.47500BallbearingCapacityCarriageDynamicInaKWVE35-B-L-V1-G3LinearLoadmomentMotionNPrecisionRatingRecirculatingStatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWVE35-B-L-V1-G3 Recirculating Ball Bearing Carriage
The INA Recirculating Ball Bearing Carriage KWVE35-B-L-V1-G3 is engineered for high precision and durability. With a dynamic load capacity of 47,500 N and an accuracy class of G3, it is ideal for demanding linear motion applications.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage
Model: KWVE35-B-L-V1-G3

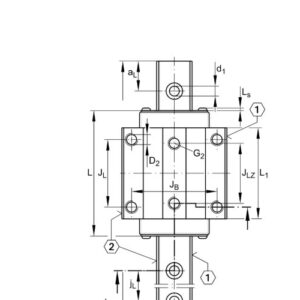

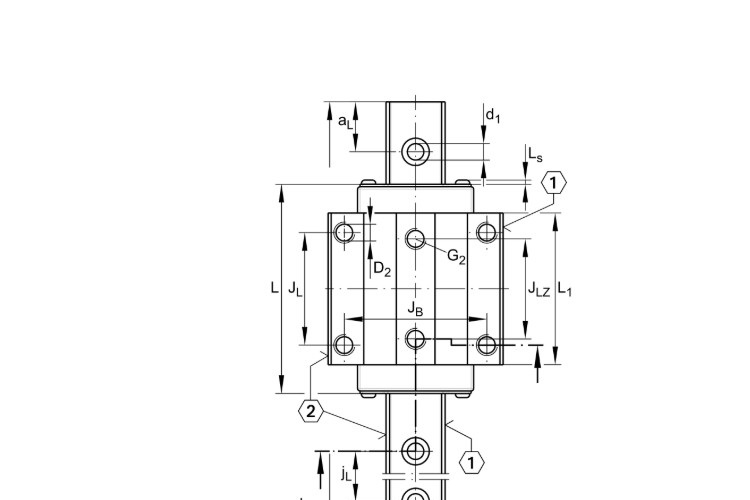

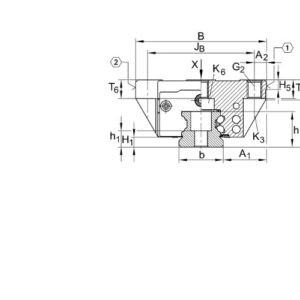

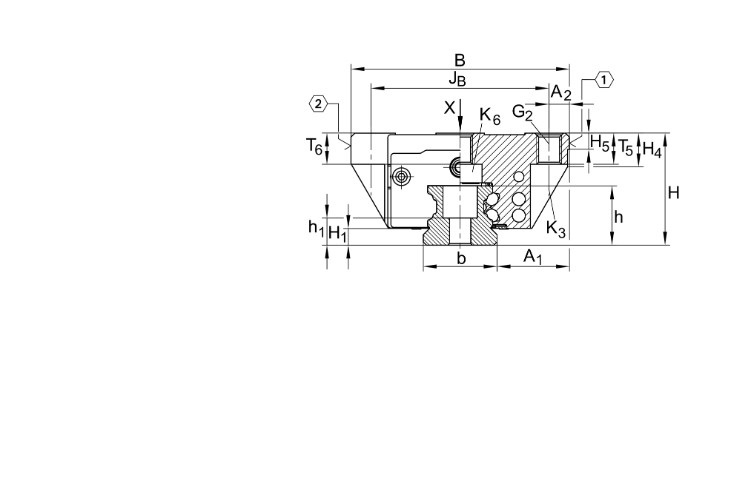

| Total Height (H) | 48 mm |
| Width Carriage (B) | 100 mm |
| Overall Length Carriage (L) | 145 mm |
| Height of Block | 41.3 mm |
| JL | 62 mm |
| JB | 82 mm |
| Dynamic Load Capacity (C) | 47,500 N |
| Static Load Capacity (C0) | 100,000 N |
| Static Moment Rating About X Axis (M0x) | 2,625 Nm |
| Static Moment Rating About Y Axis (M0Y) | 1,890 Nm |
| Static Moment Rating About Z Axis (M0Z) | 1,890 Nm |
| Preload | V1 |
| Accuracy Class | G3 |
