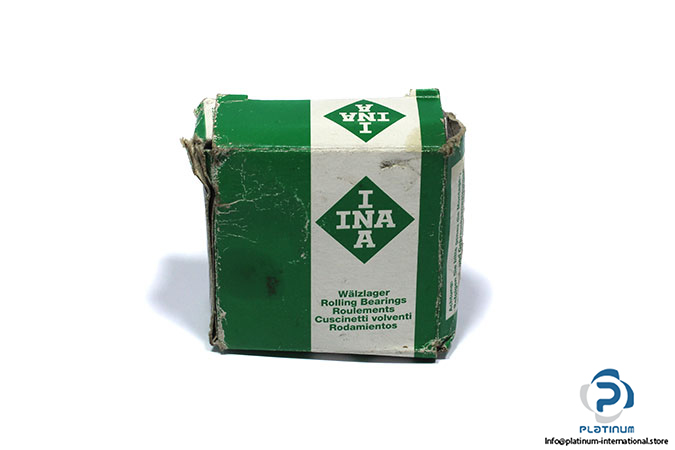

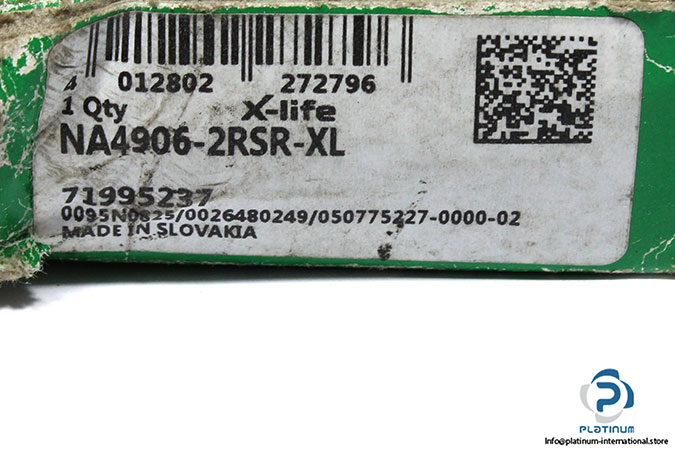

INA NA4906-2RSR-XL Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Needle roller bearing

Model: NA 4906-2RSR-XL

Dimensions:

Bore diameter d: 30 mm

Outer diameter D: 47 mm

Width B: 18 mm

Width outer ring C: 17 mm

Minimum chamfer dimension r_min: 0.3 mm

Basic load ratings:

Dynamic C: 23900 N

Static C₀: 28500 N

Fatigue load limit P_u: 5500 N

Limiting speed for grease lubrication: 5600 rpm

Sealing: Contact seal on both side
