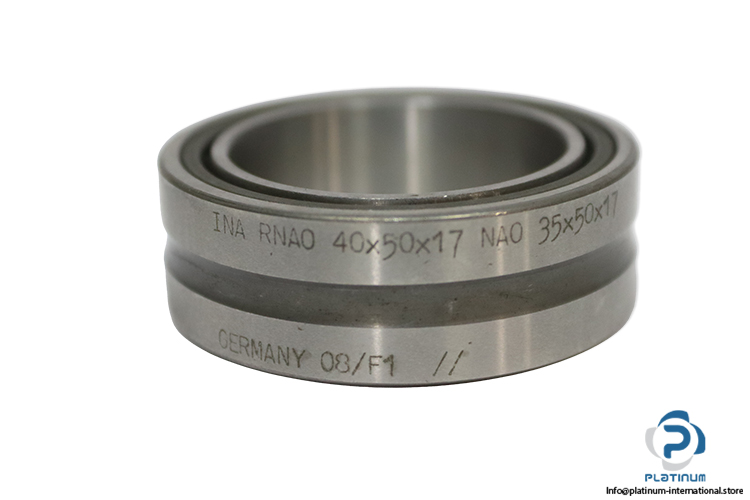

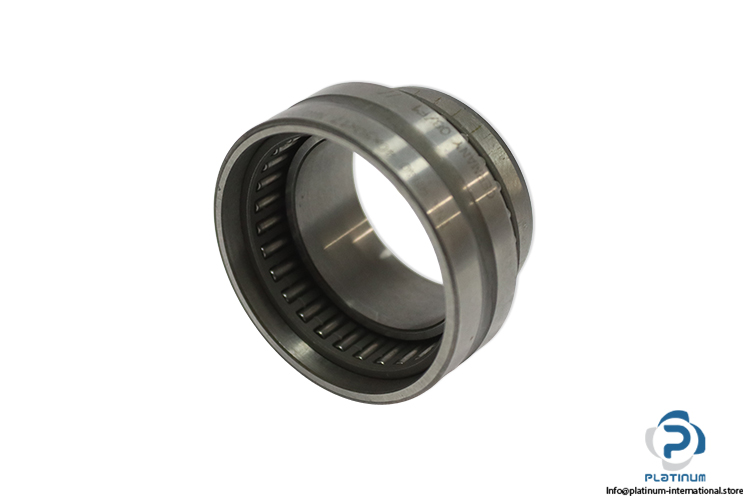

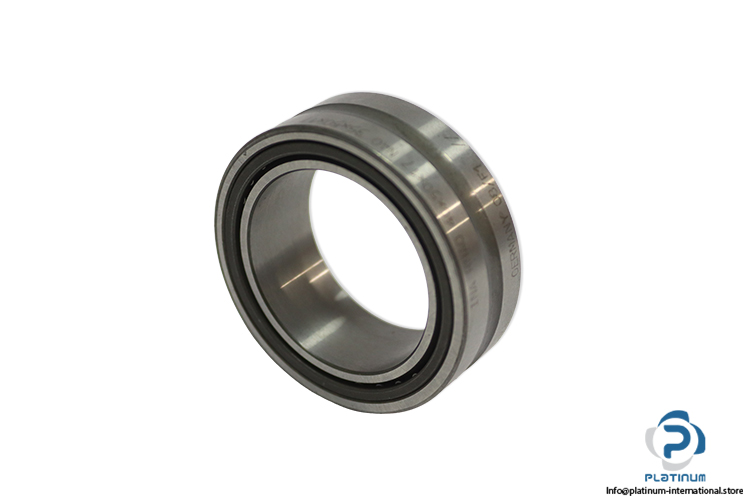

INA NAO 35X50X17 Needle Roller Bearing
Needle Roller Bearing
INA NAO35X50X17 needle roller bearing with 35 mm bore, high radial load capacity, and axial guidance, suitable for compact industrial applications.INA NAO35X50X17 Needle Roller Bearing
The INA NAO35X50X17 needle roller bearing is designed for applications requiring high radial load capacity with compact dimensions. Manufactured by Schaeffler, this bearing ensures reliable axial guidance and stable performance in demanding industrial environments.
Manufacturer: INA / Schaeffler
Type: Needle Roller Bearing
Model: NAO35X50X17
Additional Recommendation:
For optimal performance and extended service life, this needle roller bearing can be used in combination with precision shafts, bearing housings, linear motion components, and lubrication systems. Explore compatible solutions within our Bearings category to build a complete and reliable mechanical assembly.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 50 mm |
| Width (B) | 17 mm |
| Shoulder Diameter (Axial Guidance) | 40 mm |
| Basic Dynamic Load Rating (Radial) | 21,400 N |
| Basic Static Load Rating (Radial) | 41,500 N |
| Fatigue Load Limit (Radial) | 5,300 N |
| Limiting Speed | 11,500 1/min |
| Reference Speed | 6,500 1/min |
