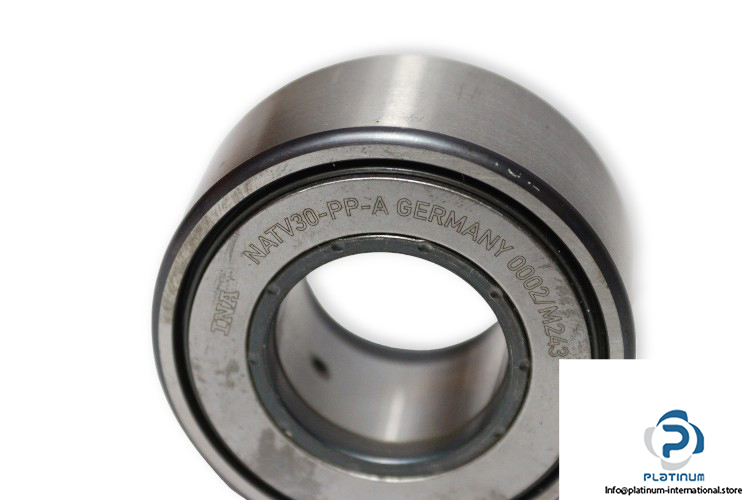

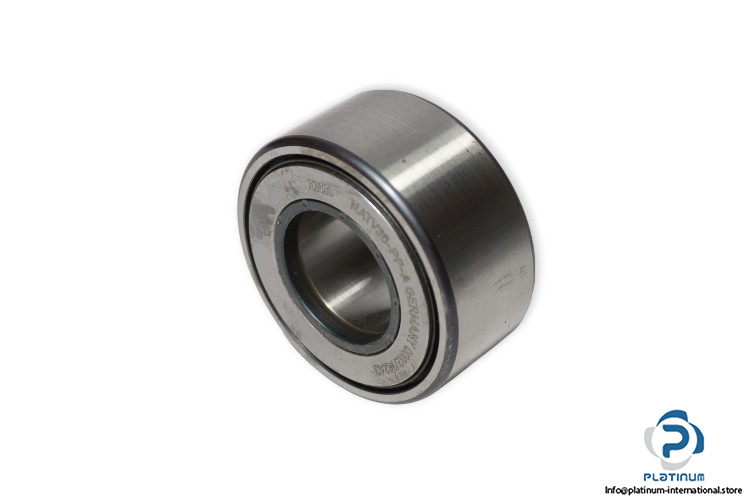

INA NATV30-PP-A Yoke Type Track Roller

Manufacturer: INA
Type: Yoke Type Track Rollers
Model: NATV 30 PPA

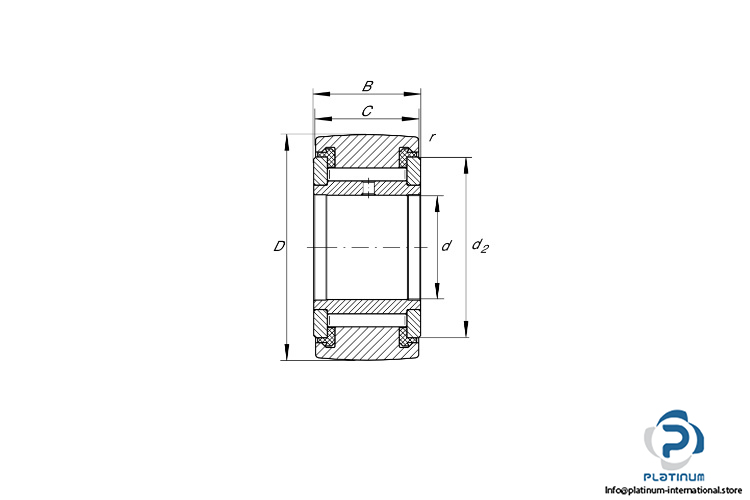

Dimensions
Bore Diameter d: 30 mm
Outer Diameter D: 62 mm
Width of the bearing B: 29 mm
Basic Load Ratings:
Dynamic C_r: 30000 N
Static C_0r: 63000 N
Fatigue load limit, radial: 9000 N
Speed on permanent grease lubrication: 850 rpm
Permissible static load, radial: 63000 N
Permissible dynamic load outer ring, radial: 55000 N
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
