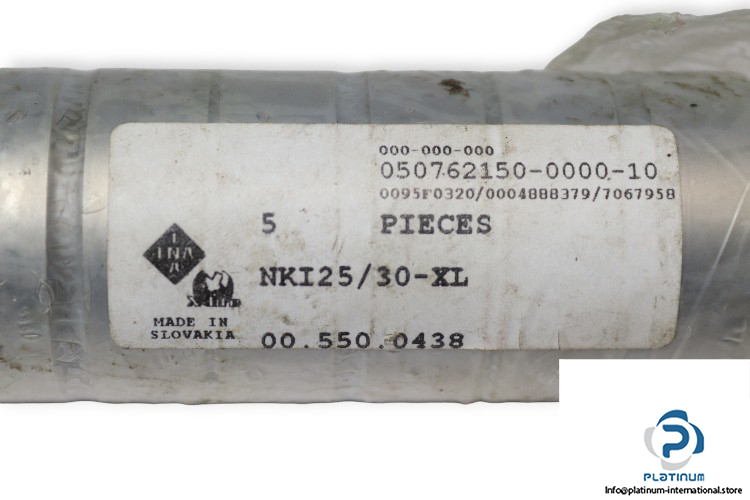

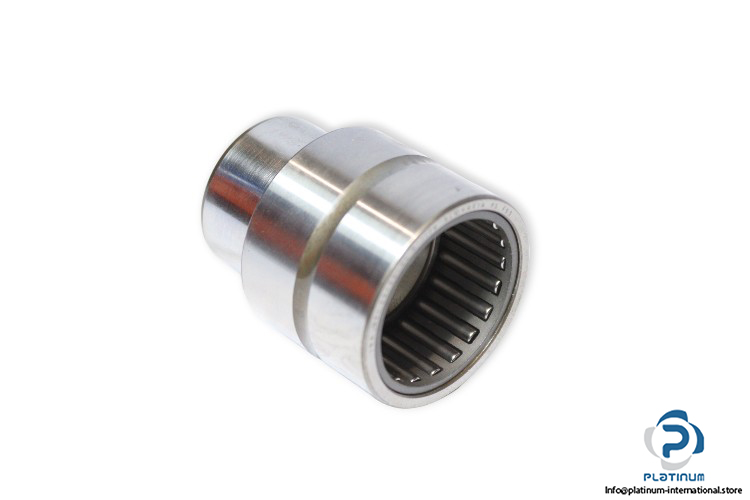

INA NKI25/30-XL Needle Roller Bearing
Manufacturer: Schaeffler INA
Type: Needle roller bearing NKI, light series
Model: NKI 25/30 XL
Dimensions
Bore Diameter d: 25 mm
Outer Diameter D: 38 mm
Width B: 30 mm
Diameter of inner ring raceway: 29 mm
Basic Load Ratings:
Dynamic Cr: 37000 N
Static C0r: 57000 N
Fatigue Load Limit, Radial: 10700 N
Reference Speed: 8200 rpm
Limiting Speed: 15300 rpm
Operating Temperature: -30 … +120 °C
