INA NX10-Z-XL Needle Roller/Axial Ball Bearing
New
In stock5 unitsReady to ship
INA Needle Roller Bearing (Model: NX10-Z-XL) offers excellent dynamic and static load ratings, with a fatigue load limit of 730 N (radial) and a limiting speed of 11,000 rpm.
Manufacturer:
INA
Type:
Needle Roller Bearing
Model:
NX10-Z-XL
The
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

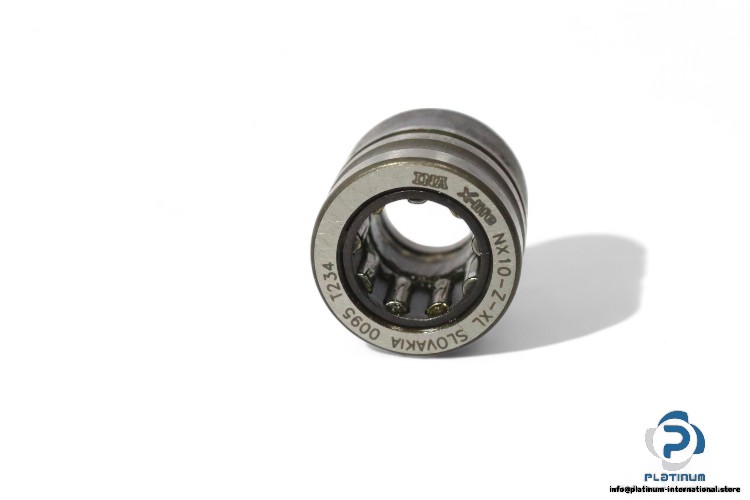

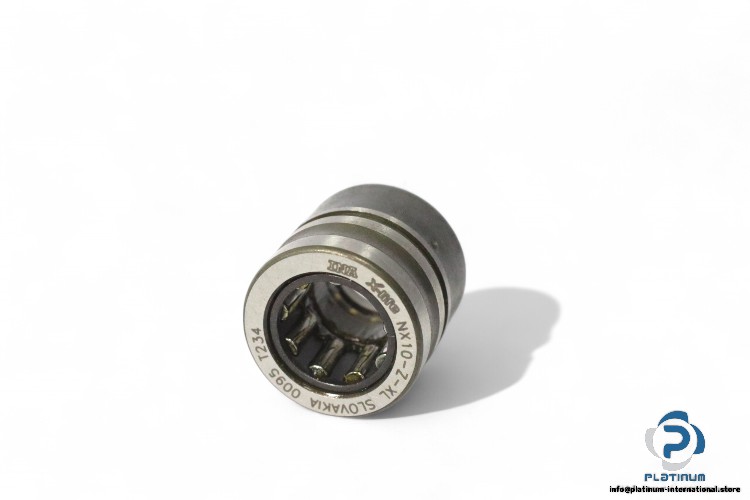

Needle Roller Bearing (Model: NX10-Z-XL)
Manufacturer: INA
Type: Needle Roller Bearing
Model: NX10-Z-XL
The INA Needle Roller Bearing (Model: NX10-Z-XL) is designed to provide excellent load handling in compact spaces. With high dynamic and static load ratings, as well as impressive fatigue load limits, this bearing is ideal for a wide range of industrial applications. The bearing comes with a sealing type of Z, with an end cap to ensure long-lasting performance.
- Manufacturer: INA
- Type: Needle Roller Bearing
- Model: NX10-Z-XL
- Bore Diameter (Fw): 10 mm
- Outer Diameter (D): 19 mm
- Height (C): 18 mm
- Dynamic Load Rating (Cr, Radial): 5,000 N
- Static Load Rating (C0r, Radial): 3,700 N
- Fatigue Load Limit (Radial): 730 N
- Dynamic Load Rating (Ca, Axial): 4,600 N
- Static Load Rating (C0a, Axial): 7,200 N
- Fatigue Load Limit (Axial): 330 N
- Limiting Speed: 11,000 rpm
- Sealing: Z, Bearing with end cap
