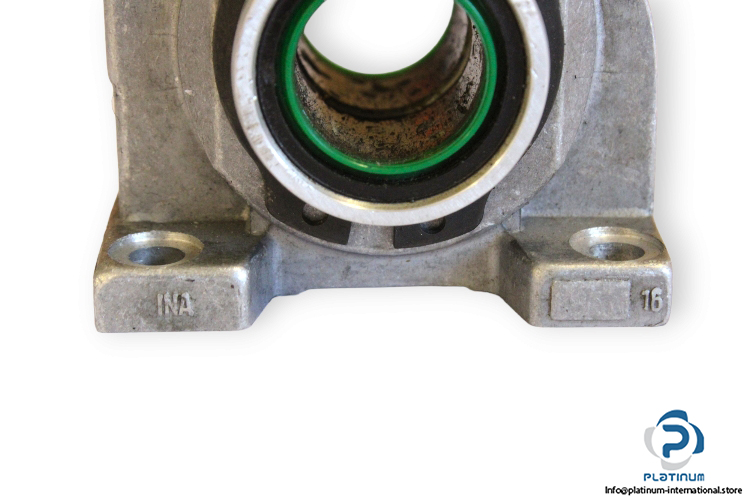

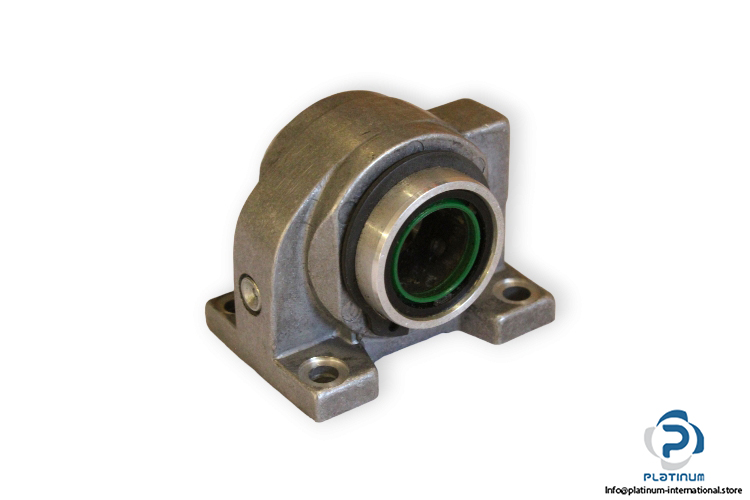

INA PAGBA16-PP-AS Linear Plain Bearing AND Housing Unit

Manufacturer: Schaeffler INA
Type:  Linear plain bearing and housing unit; sealed on all sides
Model: PAGBA 16-PP-AS

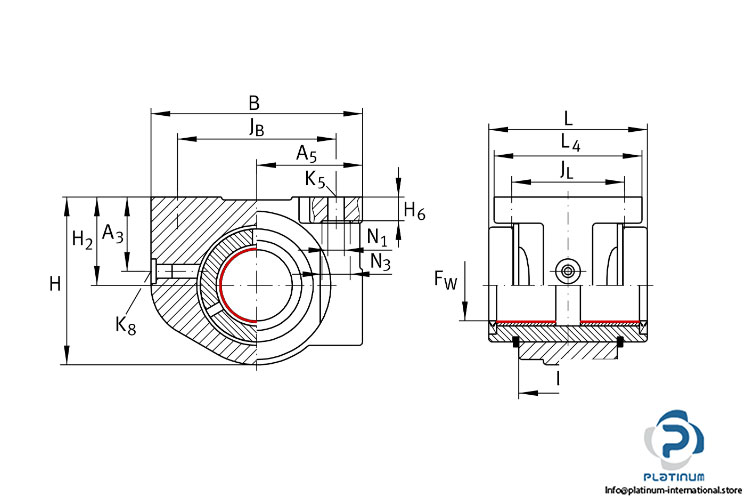

Dimensions:
Shaft diameter F_w: 16 mm
Height H: 41 mm
length L: 36 mm
Width B: 50 mm
Center height H₂: 22 mm
Mounting dimension J_B: 40 mm
Mounting dimension J_L: 26 mm
Design type: Closed type
Seals: PP, Sealed
